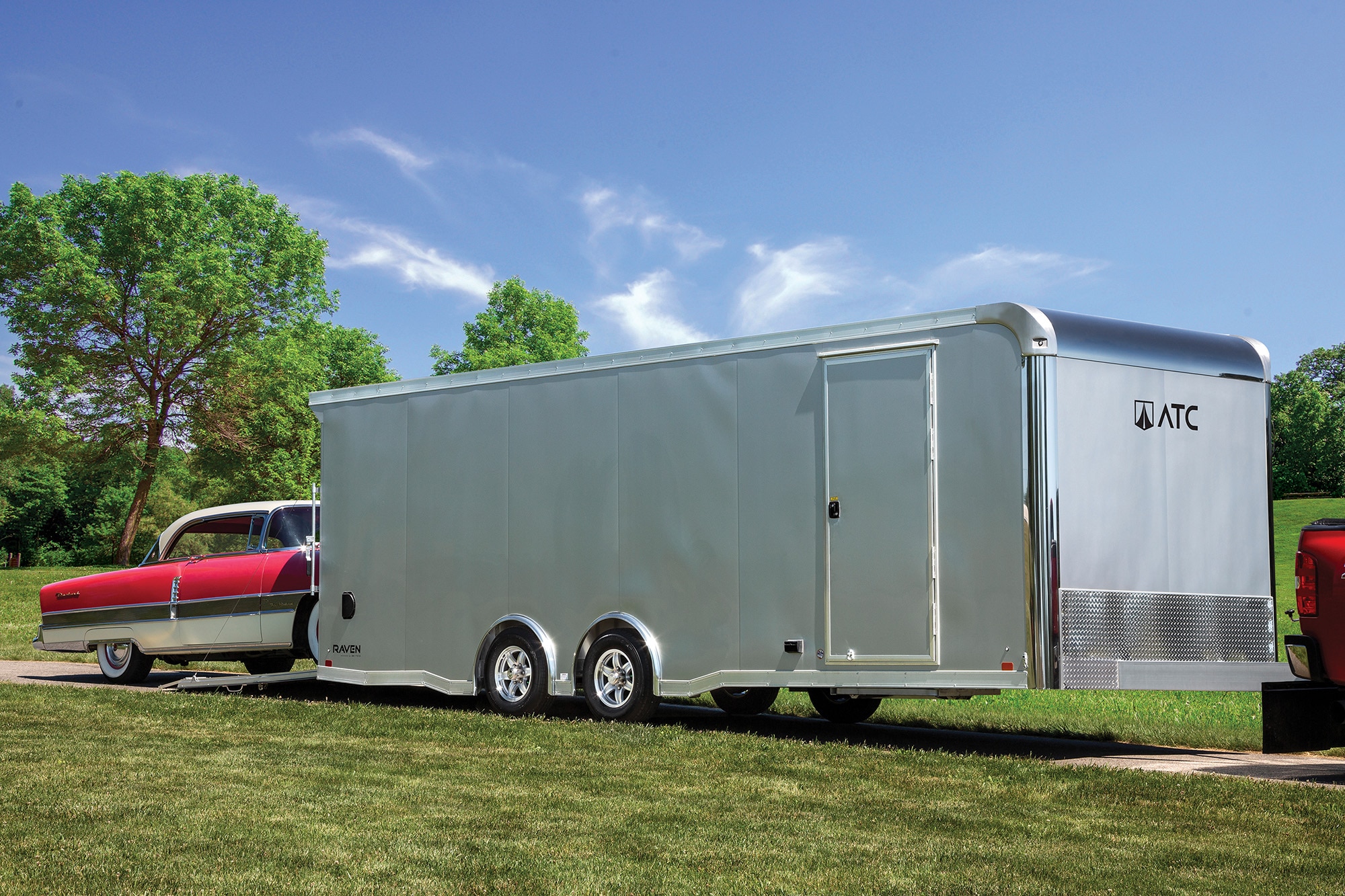

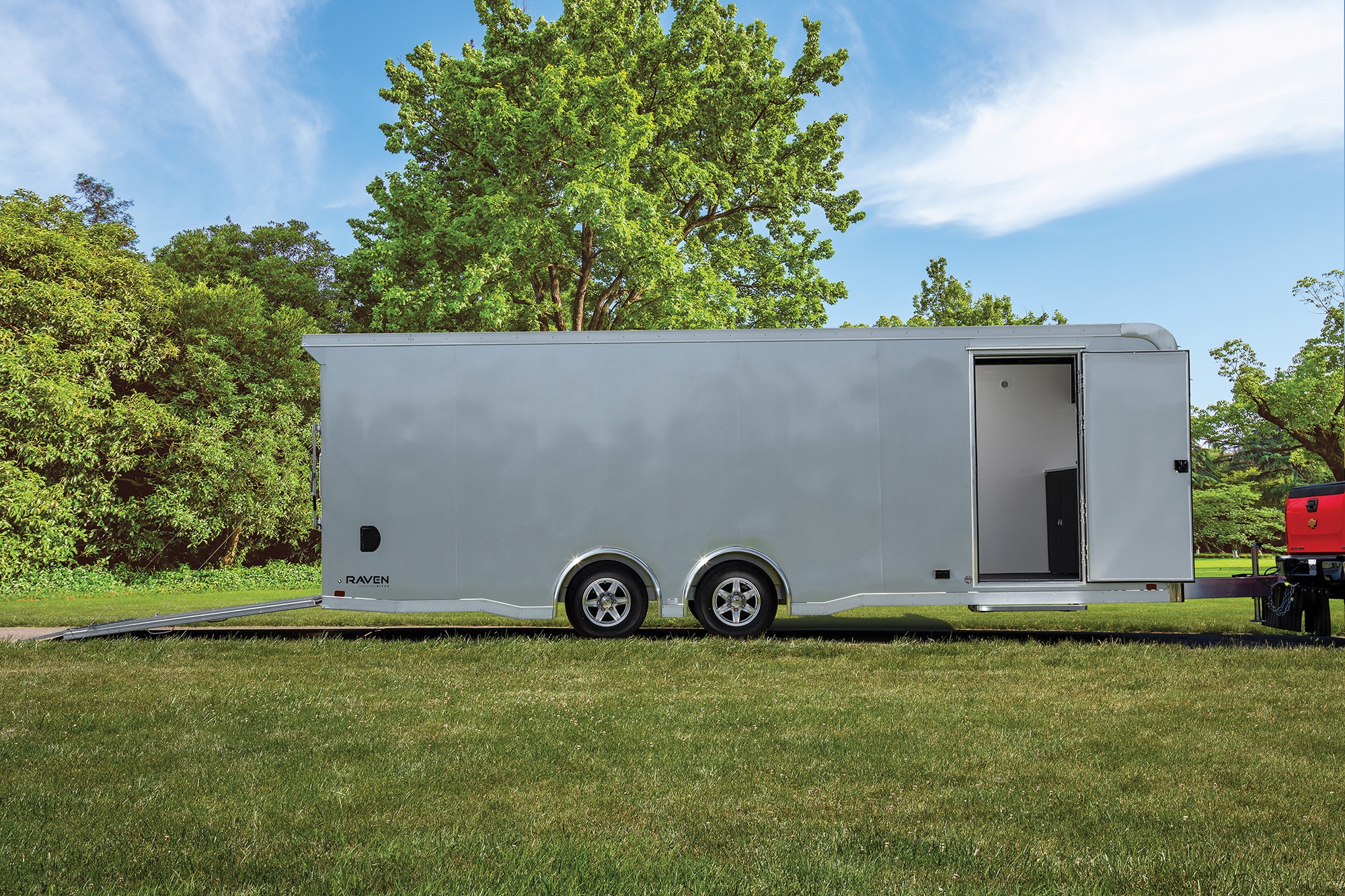

Raven Limited Car Hauler

Up to $2,000 Rebate on Eligible Models

Purchase an eligible ATC Car Hauler between May 15 – August 31, 2022 and receive a $1,500 or $2,000 mail-in rebate. Full details can be found here.

Sizes
Available in 20', 24', 28'
Basemodels
Choose the perfect fit from 4 models

Explore our variety of configurations

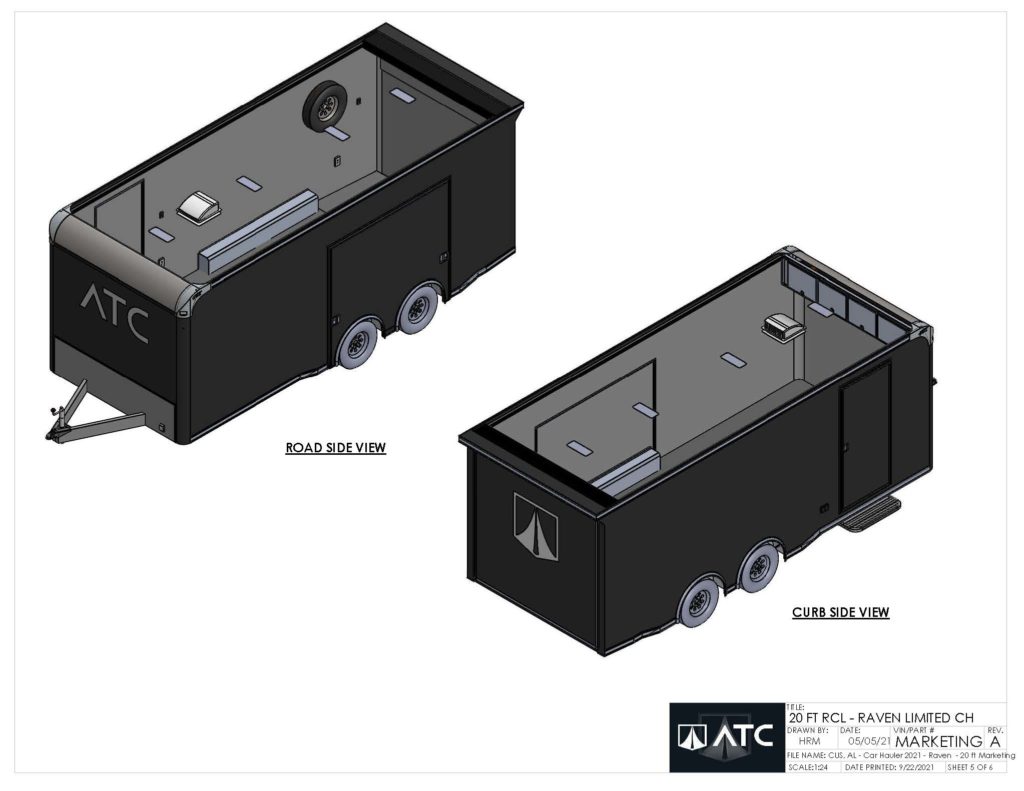

8.5' x 20' - Tandem 3500# Torsion Axle

View Details
Axle Rating
(2) 3500#
GVWR
7700#
Axle Type
Torsion
Overall Length
24'10"
Overall Width
102"
Overall Height
111.5"
Interior Length
19'11"
Interior Width
97.5"
Interior Height
84"
Minimum Ground Clearance
9 - 3/16"
Deck Height
20-3/16"
Rear Opening Width
89-7/8"
Rear Opening Height
82-7/8"
Tongue Length to Center of Ball
48.5"
Center of Coupler to Corner Radius
70.5"
Width Between Wheel Wells
83"
Brakes
4 Wheel Electric
Tire Size/Tire Load Range
205/75R15 LRD
Hitch Height To Top of Ball
19-3/16"
Hitch Ball Size
2-5/16"
Floor Studs
16"
Wall Studs
16"
Ceiling Studs
16"

8.5' x 20' - Tandem 5200# Torsion Axle

View Details
Axle Rating
(2) 5200#
GVWR
9990#
Axle Type
Torsion
Overall Length (Includes Optional 6" Spoiler)
24'10"
Overall Width
102"
Overall Height
111.5"
Interior Length
19'11"
Interior Width
97.5"
Interior Width
84"
Minimum Ground Clearance
9 - 3/16"
Deck Height
20-3/16"
Rear Opening Width
89-7/8"
Rear Opening Height
82-7/8"
Tongue Length to Center of Ball
48.5"
Center of Coupler to Corner Radius
70.5"
Width Between Wheel Wells
83"
Brakes
4 Wheel Electric
Tire Size/Tire Load Range
225/75R15 LRE
Hitch Height To Top of Ball
19-1/16"
Hitch Ball Size
2-5/16"
Floor Studs
16"
Wall Studs
16"
Ceiling Studs
16"

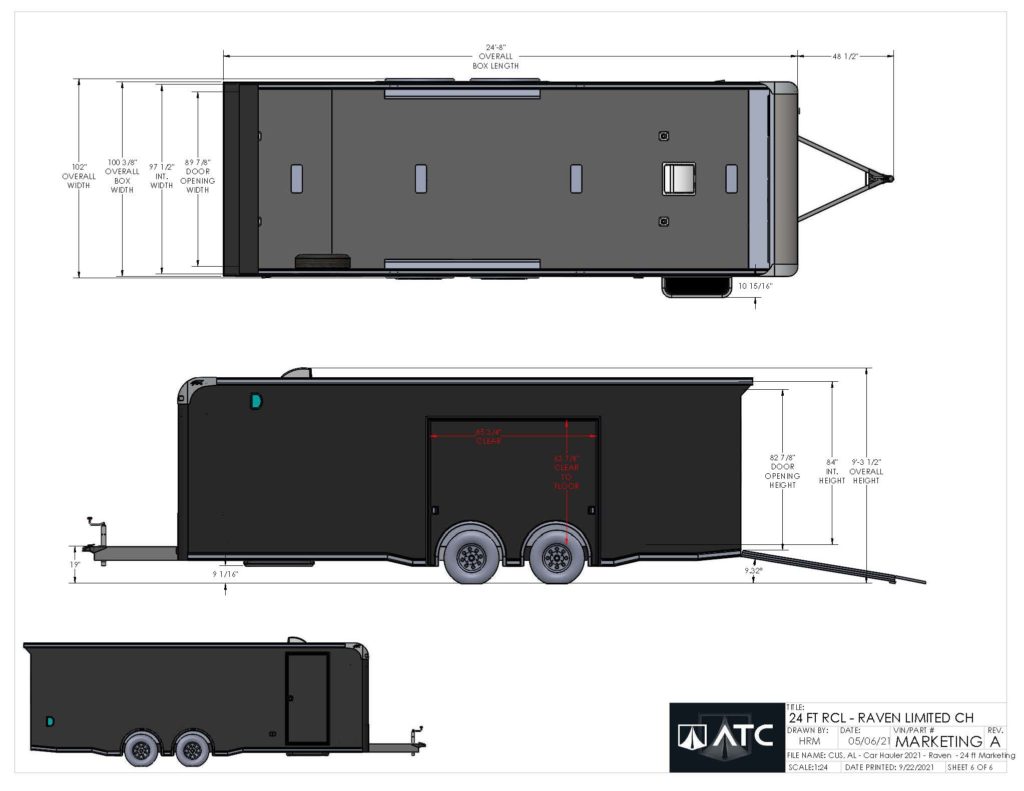

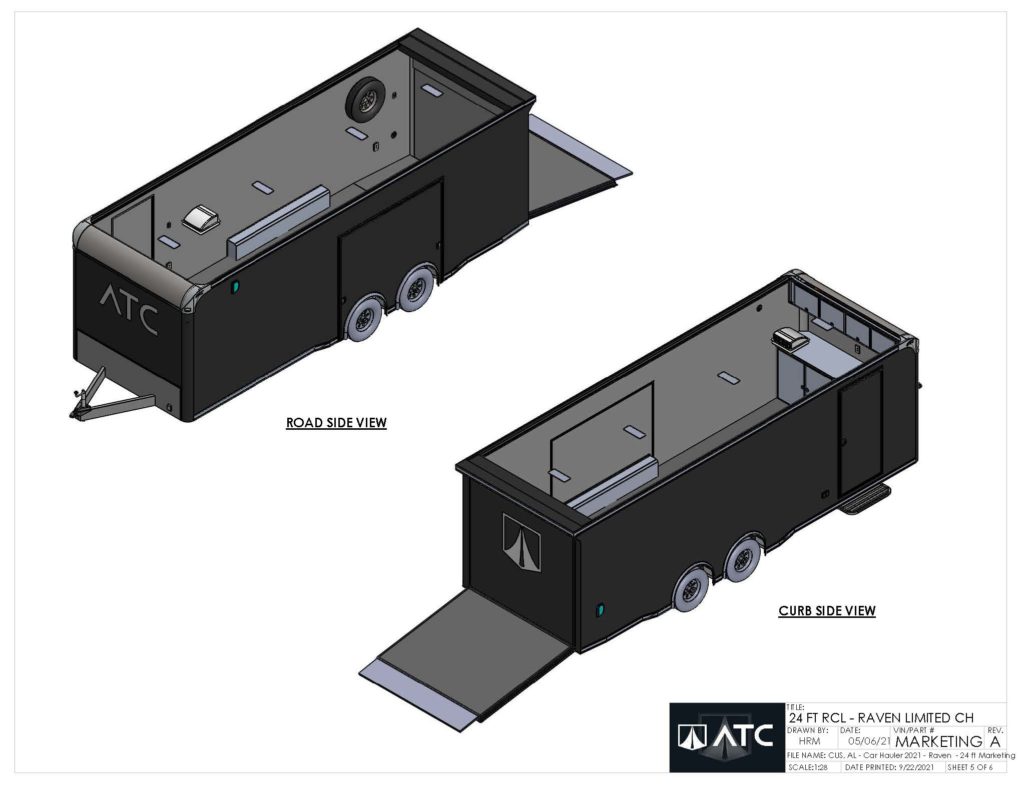

8.5' x 24' - Tandem 5200# Torsion Axle

View Details
Axle Rating
(2) 5200#
GVWR
9990#
Axle Type
Torsion
Overall Length
28'4"
Overall Width
102"
Overall Height
111-1/2"
Interior Length
23'11"
Interior Width
97.5"
Interior Height
84"
Minimum Ground Clearance
9 - 3/16"
Deck Height
20-1/16"
Rear Opening Width
89-7/8"
Rear Opening Height
82-7/8"
Tongue Length to Center of Ball
48"
Center of Coupler to Corner Radius
70.5"
Width Between Wheel Wells
83"
Axle Quantity
2
Brakes
4 Wheel Electric
Tire Size/Tire Load Range
225/75R15 LRE
Hitch Height To Top of Ball
19"
Hitch Ball Size
2-5/16"
Floor Studs
16"
Wall Studs
16"
Ceiling Studs
16"

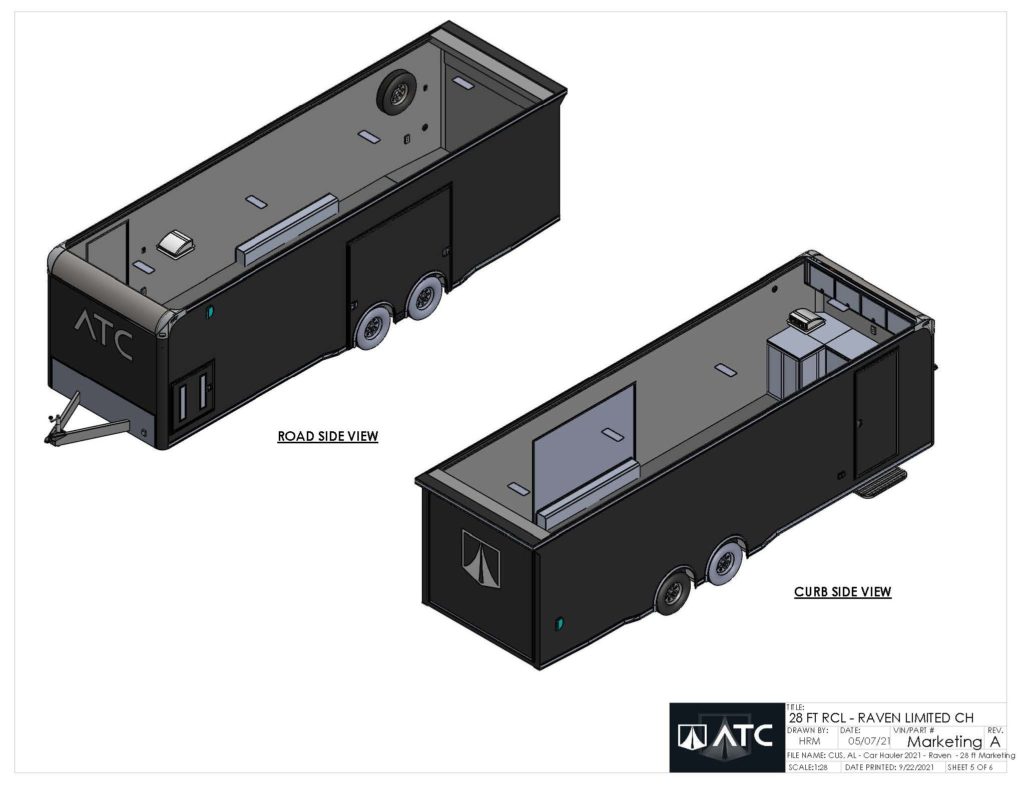

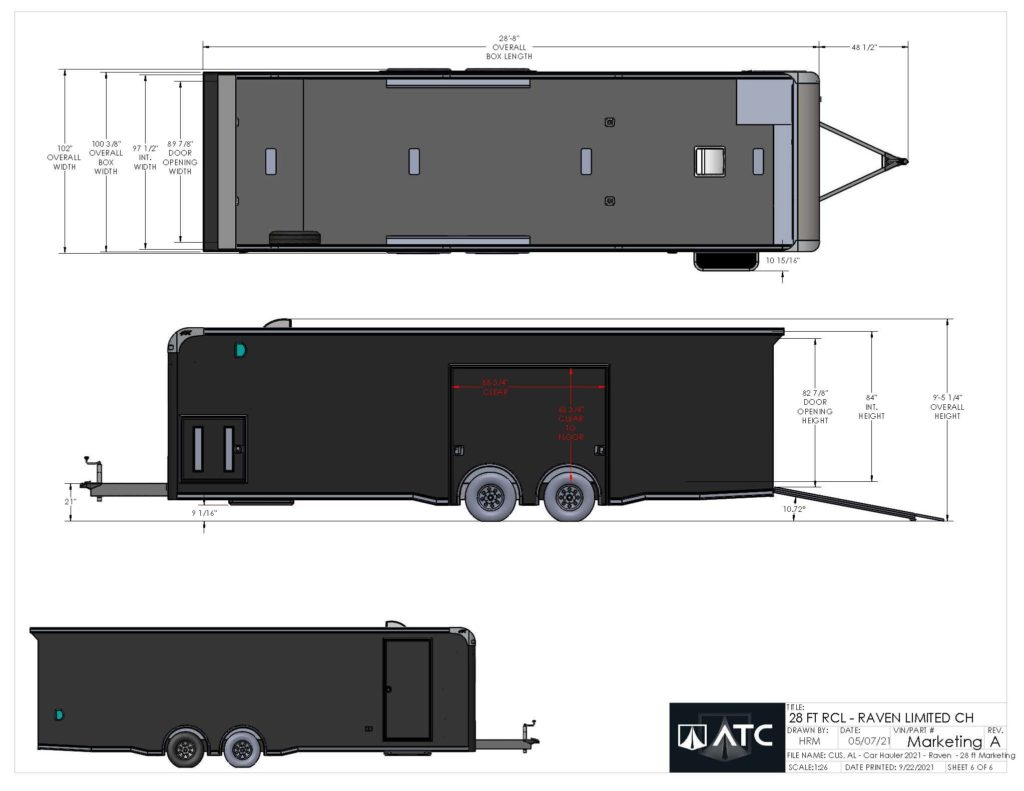

8.5' x 28' - Tandem 5200# Torsion Axle

View Details
Axle Rating
(2) 5200#
GVWR
9990#
Axle Type
Torsion
Overall Length
32'10"
Overall Width
102"
Overall Height
113.25"
Interior Length
27'11"
Interior Width
97.5"
Interior Height
84"
Minimum Ground Clearance
9 - 1/16"
Deck Height
22"
Rear Opening Width
89-7/8"
Rear Opening Height
82-7/8"
Tongue Length to Center of Ball
48"
Center of Coupler to Corner Radius
70.5"
Width Between Wheel Wells
83"
Brakes
4 Wheel Electric
Tire Size/Tire Load Range
225/75R15 LRE
Hitch Height To Top of Ball
21"
Hitch Ball Size
2-5/16"
Floor Studs
16"
Wall Studs
16"
Ceiling Studs
16"

The features you need most

All Standard Features

  • Frame Features
  • Full Perimeter Aluminum Frame
  • All-Tube Aluminum Construction

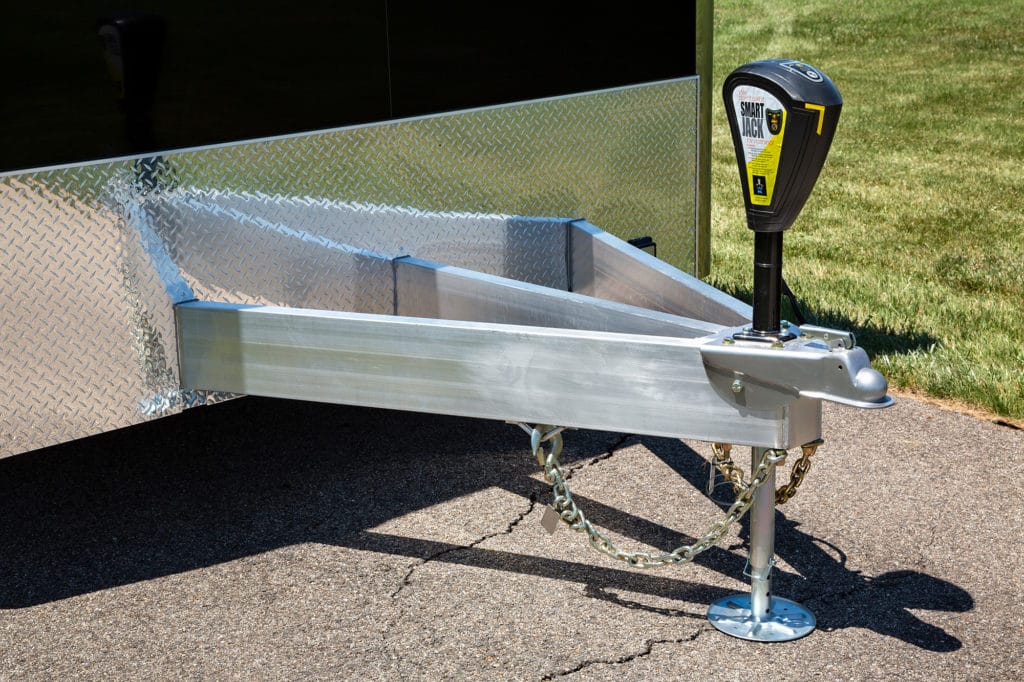

  • Extended Tongue
  • Torsion Axles
  • Electric Brakes - All Axles
  • Breakaway Battery Kit
  • 7- Way Trailer Plug
  • 2 5/16” Ball Coupler
  • Safety Chains
  • 5000# Manual Crank Jack
  • 16” O/C Floor Crossmembers
  • 16” O/C Wall Crossmembers
  • 16” O/C Roof Studs
  • Smooth Aluminum Wheel Boxes

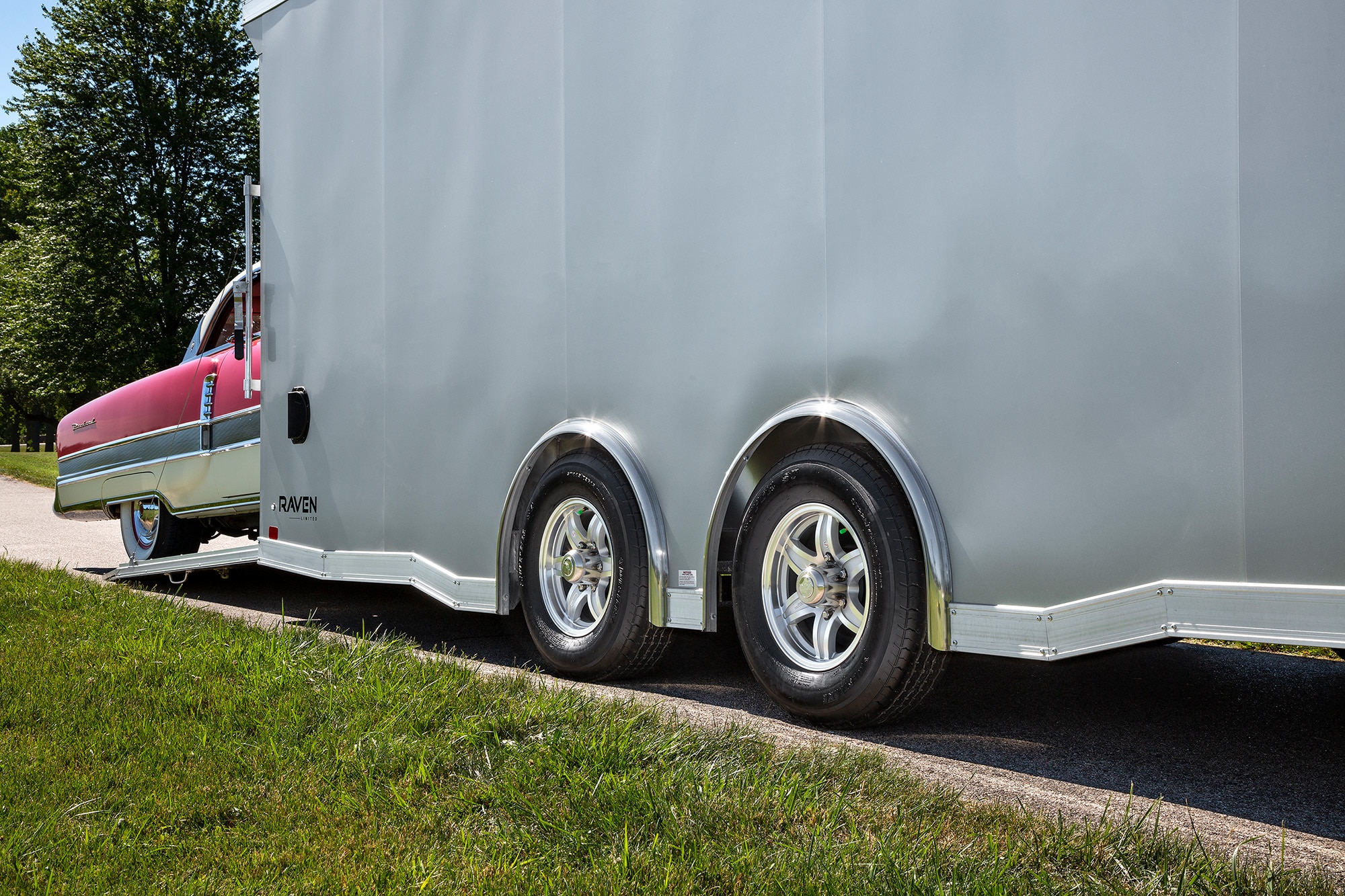

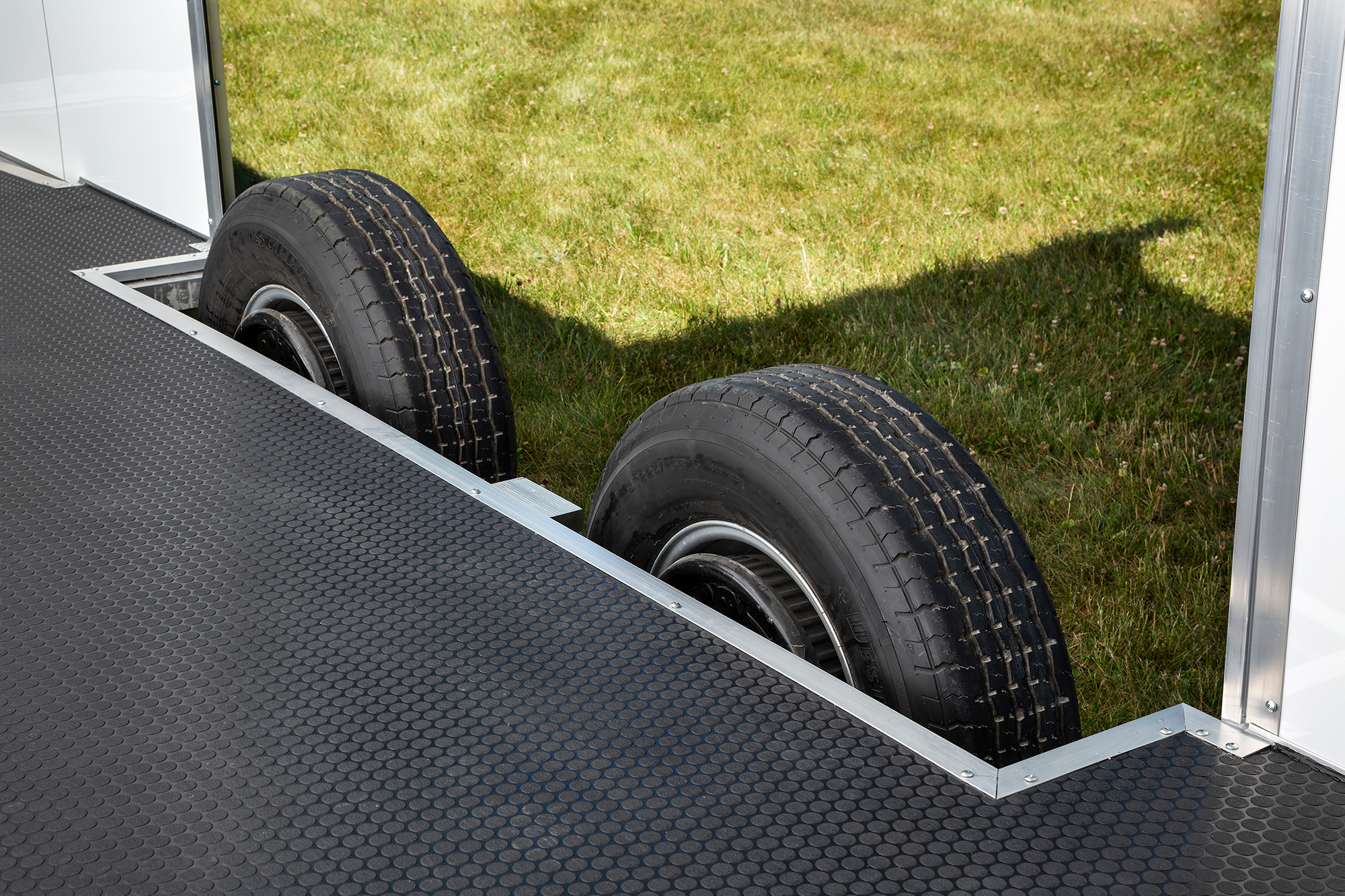

  • Spread Axle Design w Individual Fenderettes
  • Grey Mod Wheels w/ Radial Tires - Nitro Fill
  • Winch Plate
  • Spare Tire Wall Mount Backer
  • Exterior Features
  • .030 Aluminum Skin - Screwless
  • One-Piece Aluminum Roof
  • 3” Upper Rub Rail Trim
  • 3” Lower Rub Rail Trim
  • LED Clearance Lights
  • LED Tail Lights
  • 24” ATP Stoneguard

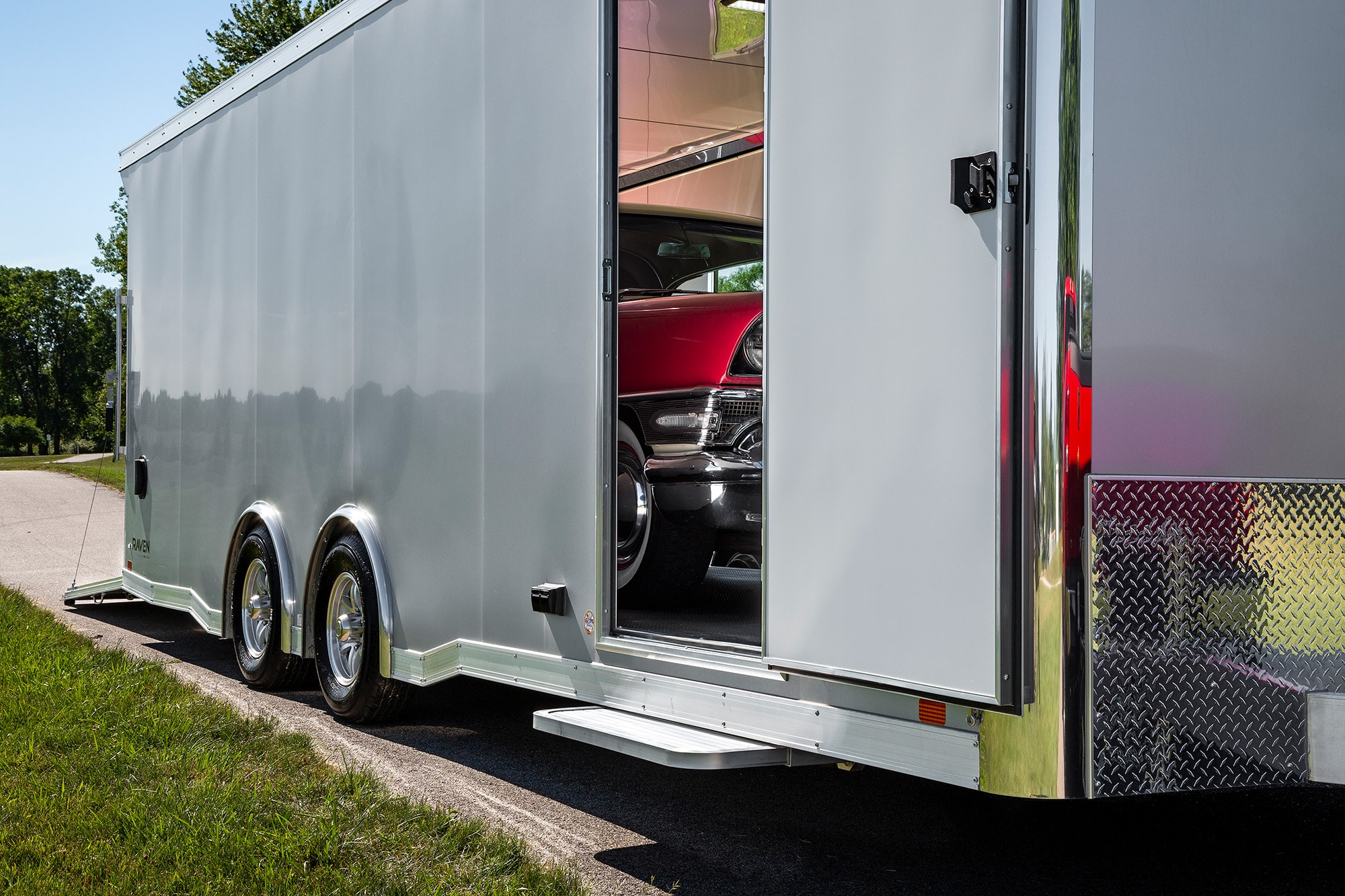

  • 36” 110 Series Door w/ Slam Latch
  • Cast Corners w SS Vertical And Horizontal

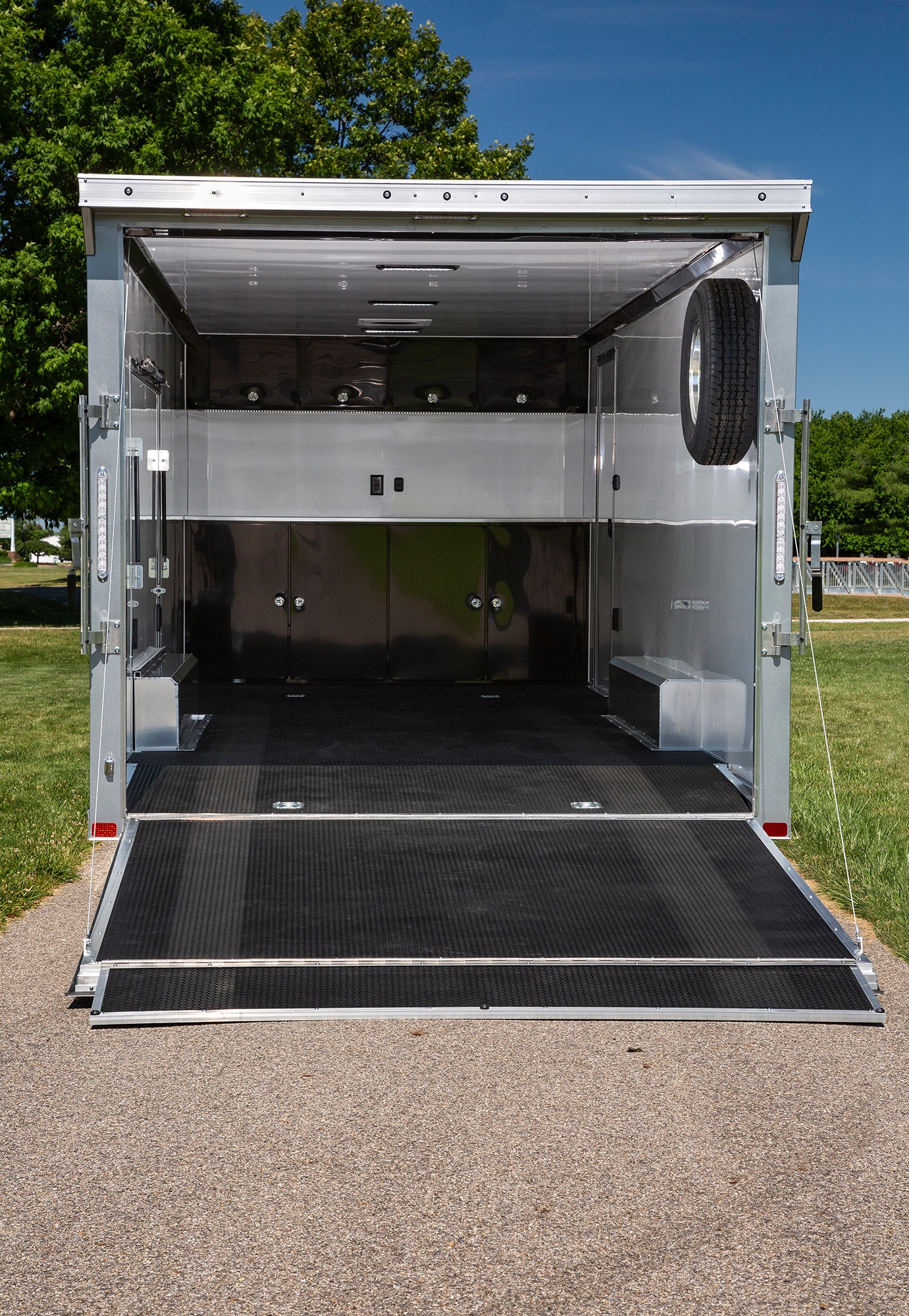

  • Rear Ramp Door w Spring Assist - Engineered Floor
  • Transition Flap - Engineered Floor
  • Aluminum Bar Locks - Rear Ramp Door
  • Rear Skid Plates
  • Interior Features
  • 3/4” Engineered Subfloor
  • (2) 12v LED Dome Lights w Switch
  • (1) Roof Vent w Maxxair Cover
  • 7.0’ Interior Height
  • (4) 5000# Recessed D-Rings
  • 4’ Beavertail -(3’ for 20’ trailer)
  • 3/8” Engineered Wood Walls
  • Open Stud Ceiling w Mill Finish Cove

All Popular Options

All Packages

  • Exterior
  • Perimeter Skirting With Reverse Beavertail
  • • 4” Trim - Upper and Lower
  • Rear Spoiler - Mill Finish w/ 3 LED Lights
  • Aluminum Wheels with Radial Tires
  • Interior
  • TPO - Black Coin Floor
  • TPO - Black Coin Ramp and Trans Flap
  • Screwless Aluminum - Walls and Ceiling - White (Black Cove & SP Box)
  • Deluxe (Not Available on 20' Models)
  • Perimeter Skirting with Reverse Beavertail
  • 4” Trim - Upper and Lower
  • Rear Spoiler - Mill Finish w/ (3) LED Lights
  • Radial Tires on Aluminum Wheels
  • TPO - Black Coin Floor
  • TPO - Black Coin Ramp and Trans Flap
  • Screwless Aluminum - Walls and Ceiling - White (Black Cove & SP Box)

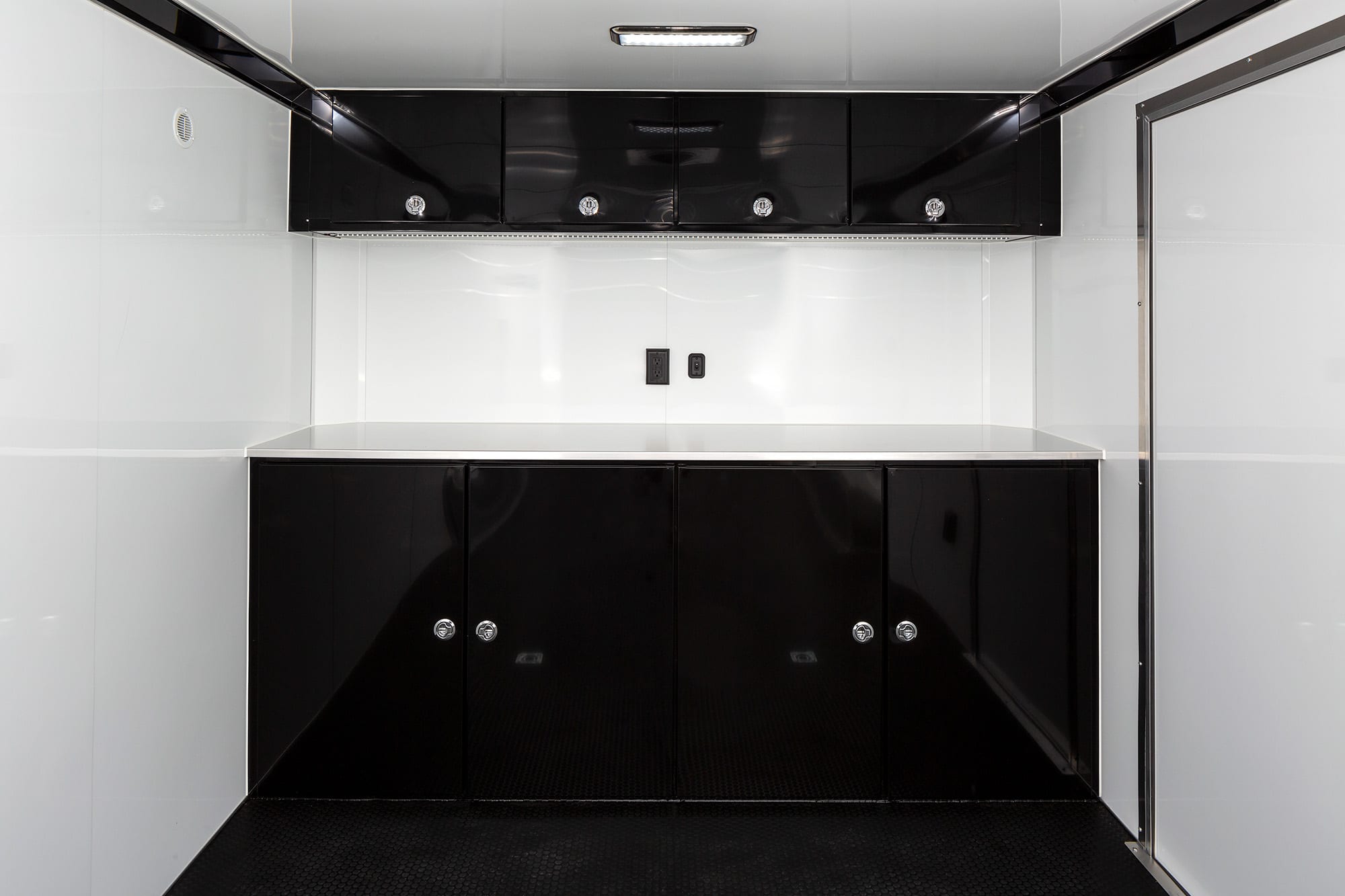

  • Required Choice of Cabinet Package - See Options Above
  • 30 Amp Breaker w/ 60 Amp Converter
  • 12V Fuse Panel - INTELI-PWR
  • (4) Rectangular - LED Ceiling Lights
  • (3) Interior GFI Outlets - (1) Exterior GFI Outlet
  • A/C Prep
  • Slide In/Out Aluminum Step
  • 12V AGM Battery
