Rōm 400/450 20'

View All Sizes

8.5' x 20'

8.5' x 16'

8.5' x 20'

8.5' x 24'

8.5' x 28'

What is LifeTrac™?

7,700 lb GVWR

Full-Size Truck Towable

Fits a Full-Size Car

STARTING AT

$20,496

Full Details

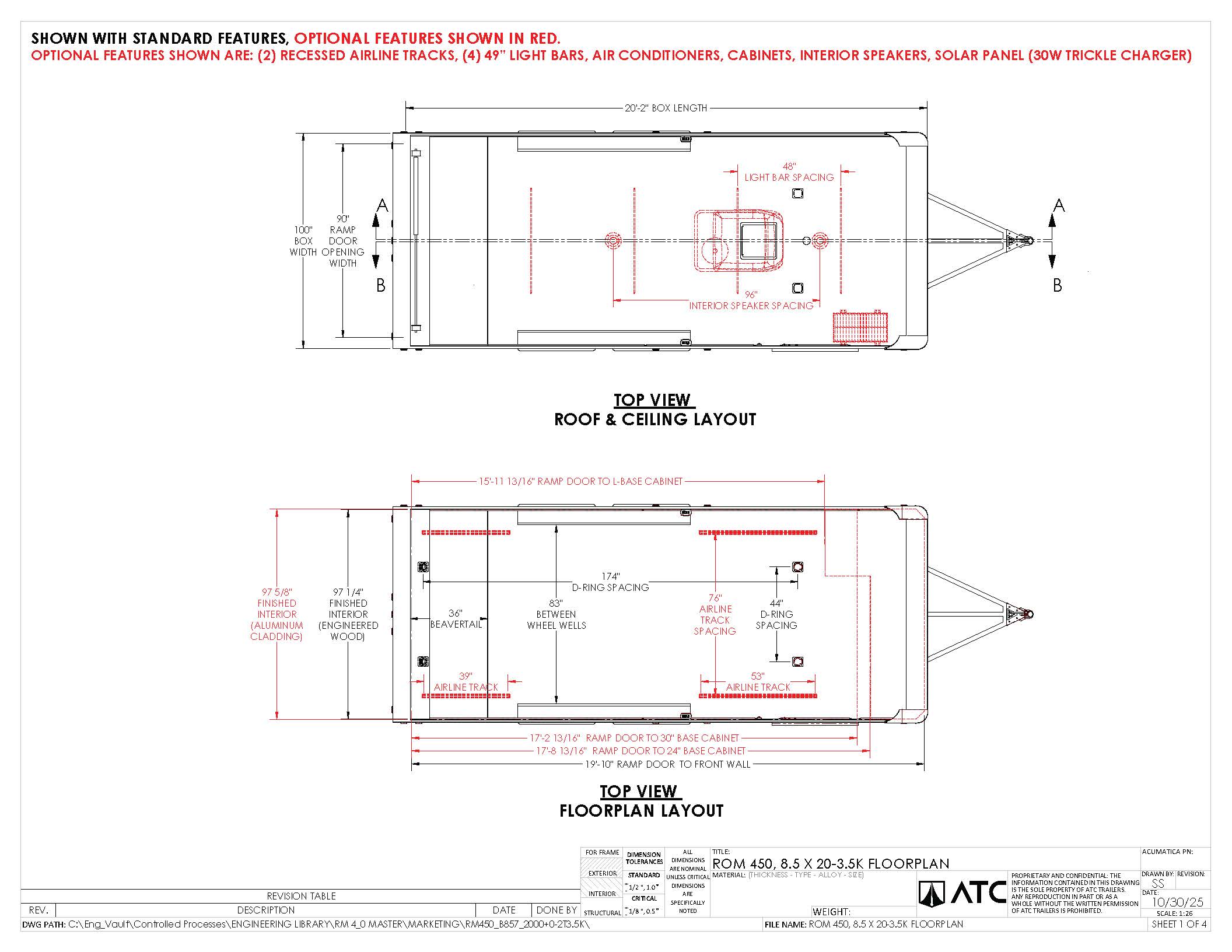

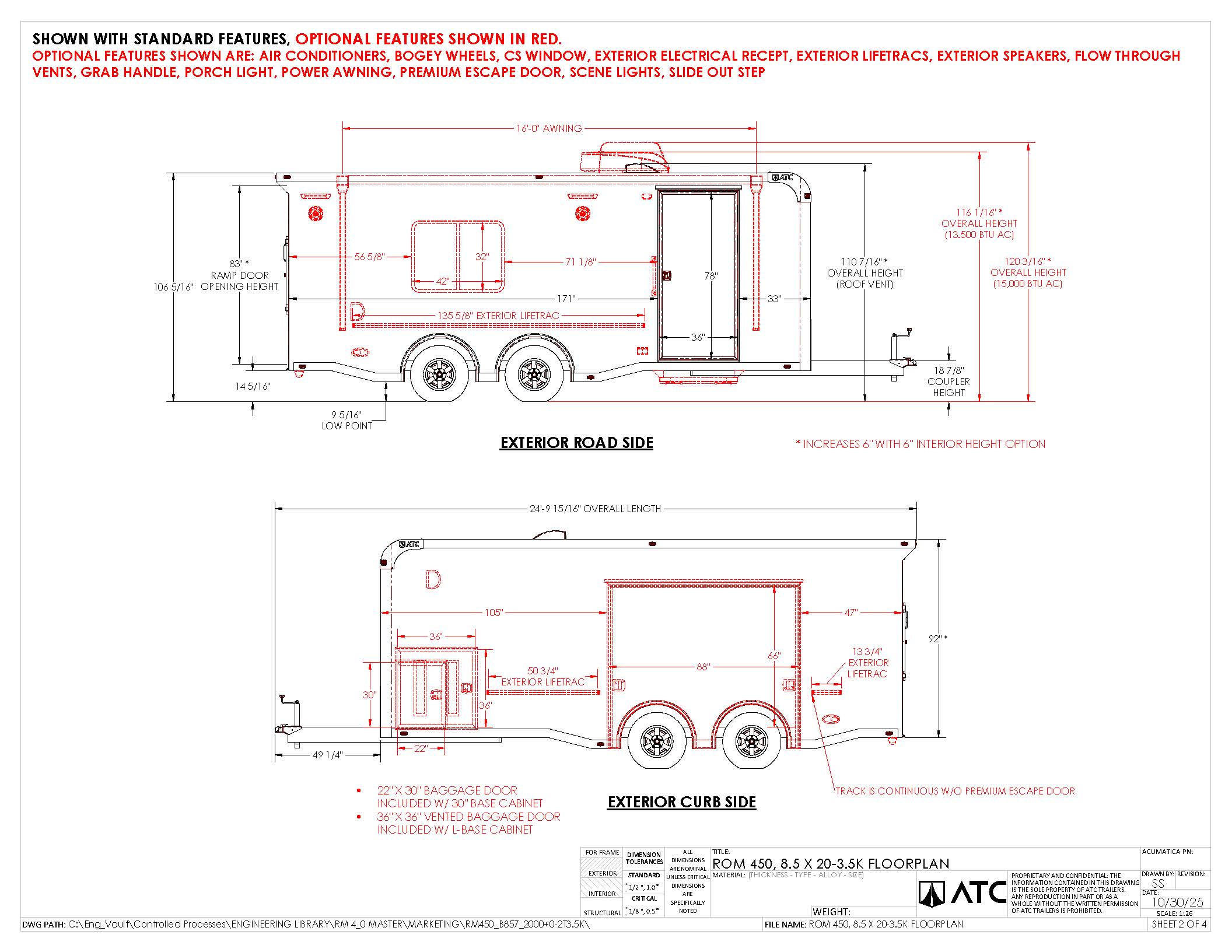

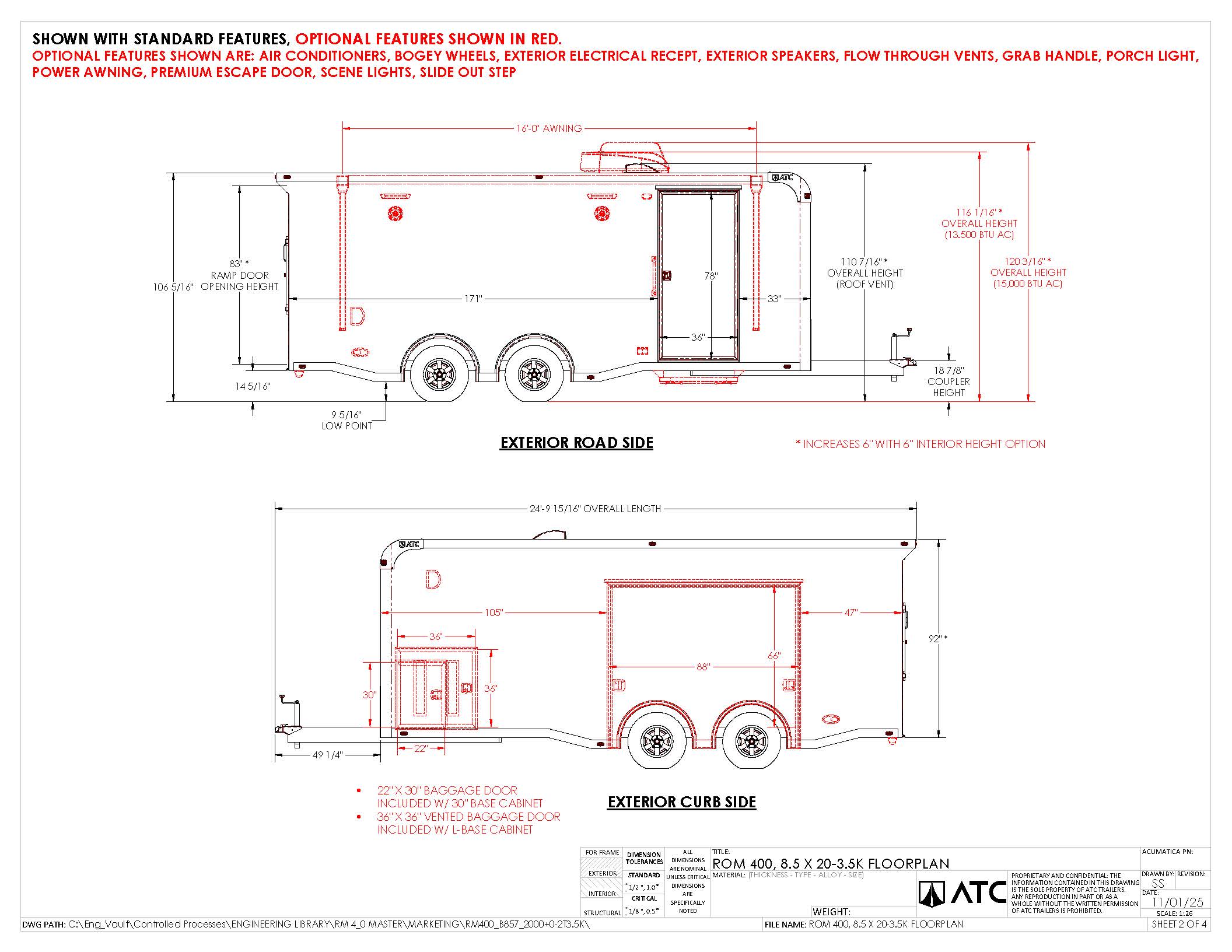

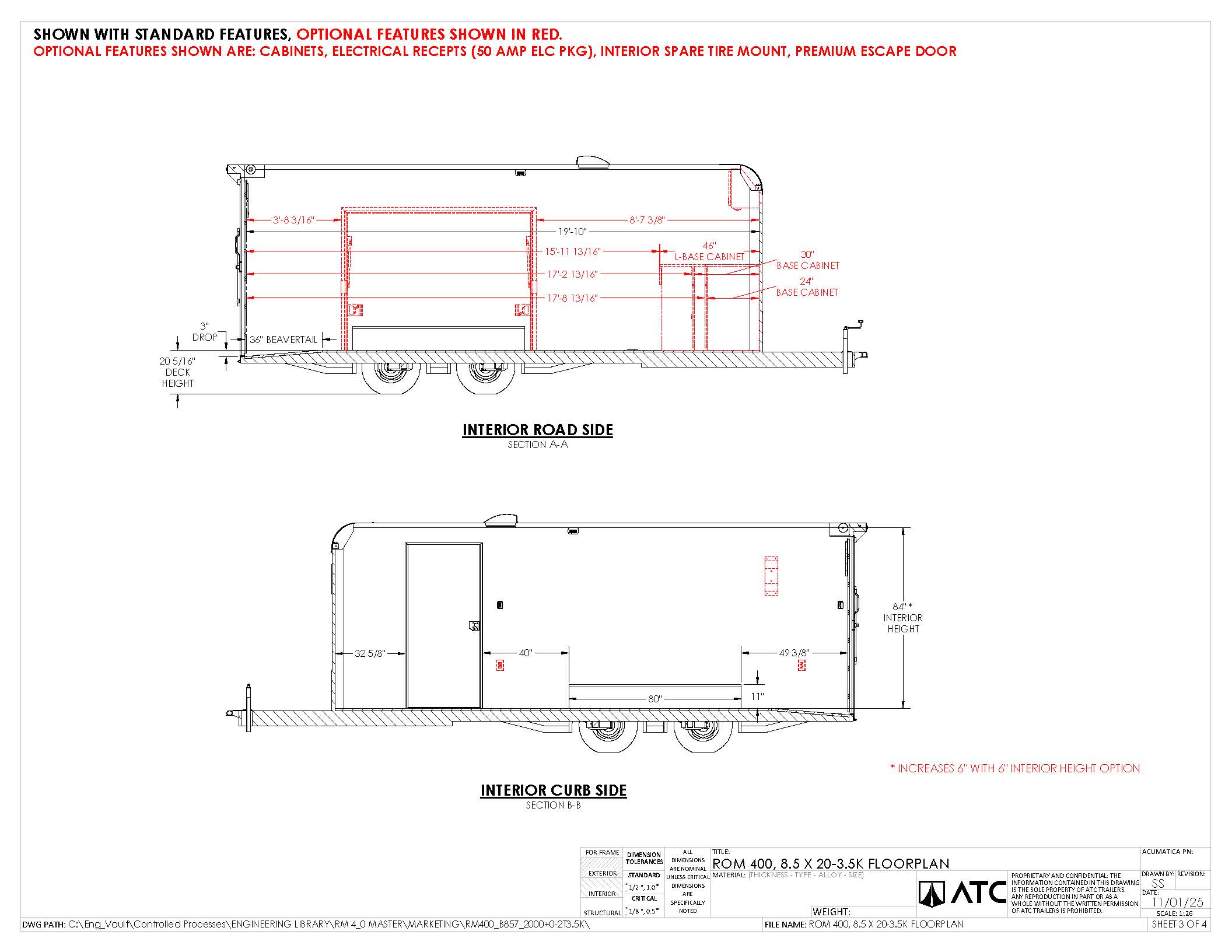

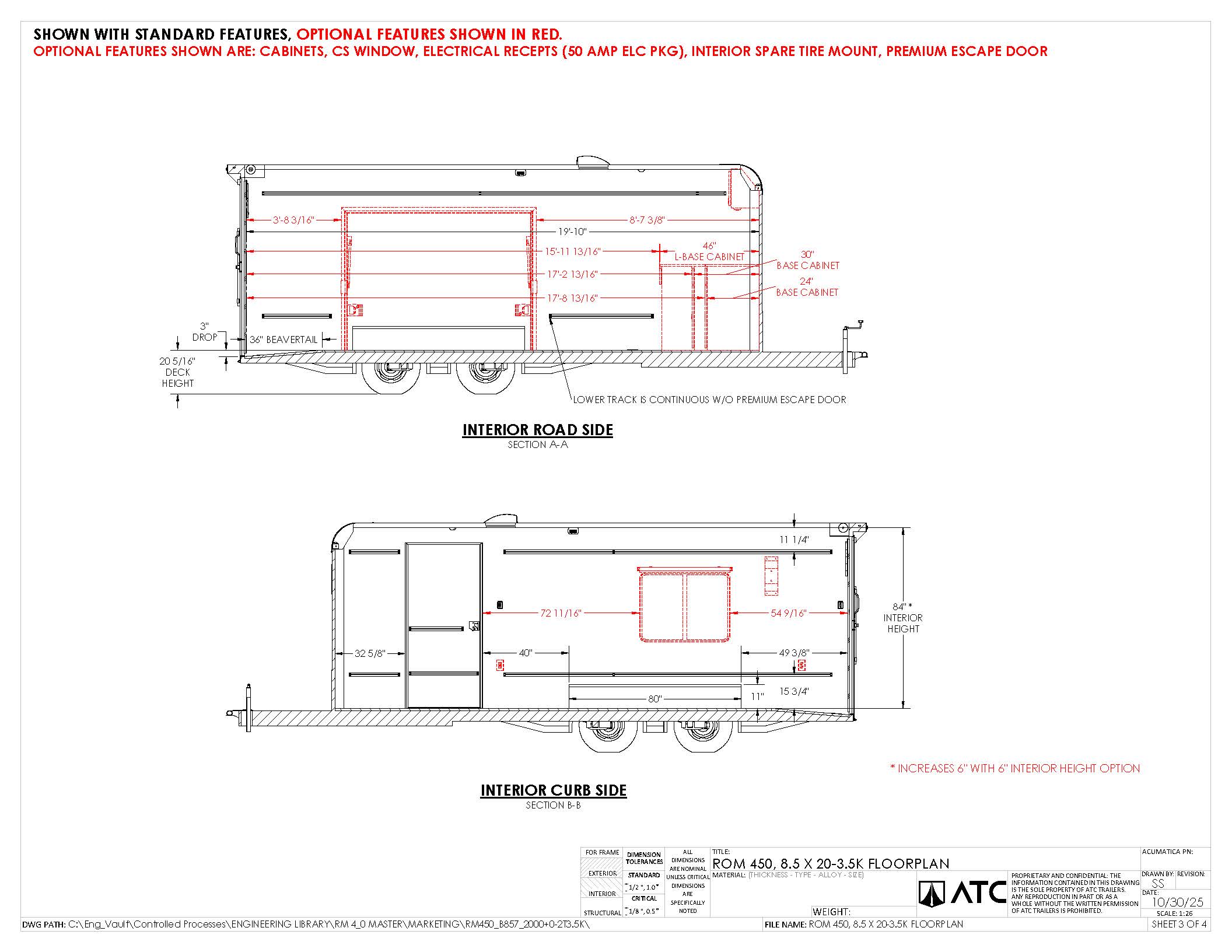

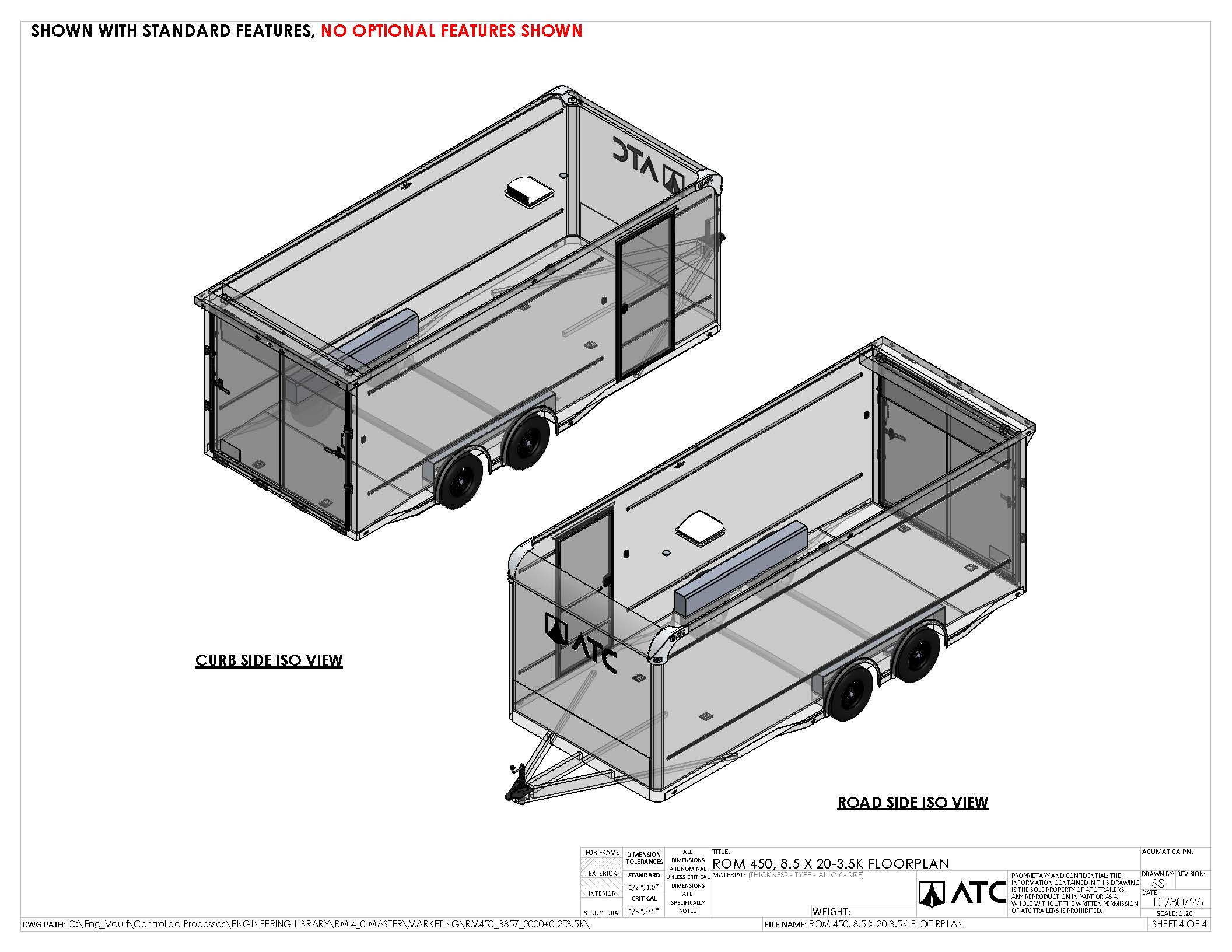

Specifications + Prints
Standard Features
Amenity Packages
Cabinet Packages
Options
LifeTrac Packages
LifeTrac Accessories

Front Shape

Flat Front - Cast Corner

Box (LxW)

20' x 8.5'

Interior (LxWxH)

19' 10" x 97" x 84"

Overall (LxWxH)

25' 6" x 102" x 112"

Rear Door Opening (WxH)

90" x 83"

Deck Height

20"

Hitch Height

19"

Axle(s)- Qty/Rating

2 x 3,500 lb

GVWR

7,700 lb

Curb Weight*

2,700 lb

Payload*

5,000 lb

Ball Size / Coupler Rating

2 5/16" / 10,000 lb

Wheels

15" Aluminum

Tires

ST205/75R15 LRD

Power Connection

7-Way

Frame
Aluminum Tube Construction
6-Sided Welded Frame
Integrated Tongue
16” O/C Floor Crossmembers
16” O/C Wall Crossmembers (400) / ATC Cross-Grid Wall Technology (450)
16” O/C Roof Crossmembers
2” x 5” Subframe Tubing (16’-24’)
2” x 7” Subframe Tubing (28’)
3 Year Structural Warranty
Brushed Cast Corners w/ Stainless Steel Trim
Spread Axles w/ Kick Downs
49” Extended Tongue
Winch Plate
Beavertail Floor (N/A on 16’)

Mechanical
Torsion Axles
ST 205 or 225 Aluminum Wheels
Entrance Door – 36” (16’- 24’) or 48” (28’)
Safety Chains
5,000 lb Manual Jack
A-Frame Coupler
4,000 lb Ramp Door
Aluminum Bar Locks with Stainless Steel Hasp
Ramp Transition Flap
12” Slimline Lights
(4) Recessed D-Rings

Other Construction Detail
One-Piece Aluminum Roof
.030 Screwless Aluminum Exterior
24” Stone Guard
3/8” Engineered Walls w/ Cove
3/4” Engineered Floor
Open Stud Ceiling
(1) Dome Light w/ Wall Switch
(1) Manual Roof Vents
4” Lower and 4” Upper Trim
Color Matched Rear Header & Verticals\
Rear Spoiler w/ (3) LED Lights & Back Up
LifeTrac – Modular Track System (450 Only)
Window Prep (450 Only)

Premier Package – Coin or Extruded
Black Coin or Extruded Floor, Ramp and Trans
Alum Walls – White
Alum Ceiling – White & Sp Cover (Black)
30 Amp BB w/ Conv – 50 Series
(2) Int Outlets – (1) w/ USB
(1) Ext Outlet
(4) 49” LED Lights
25’ Shore Cord
A/C Prep
Lithium Battery – 100 Amp Hrs
(2) USB Cove Ports (450 Only)
(2)12v Scene Lights (CS)
Premium Escape Door
Aluminum Slide Out Step
Required Choice of Cab Pkg

Black Trim Package
Black ATP Gravel Guard
Black Upper and Lower Trims
Black Exterior Fasteners on Trim
Black Fenders
Black Wheels
Black Exterior Door Trim
Black Grab Handles and Bar Locks
Black Logos

Premium Escape Door Package

Cabinet Package 1

Upper Cabinets

Cabinet Package 2

Upper & Fold Down Counter

Cabinet Package 3

Upper & Lower

Cabinet Package 4

Upper & L-Base/Gen Door

Cabinet Package 5

Upper & Lower w/ Dresser/Drawer Bank

Cabinet Package 6

Upper & L-Base/Gen Door w/ Dresser/Drawer Bank

Cabinet Package 7

Upper & 30” Lower w/ Storage Box/Door/Slide

Cabinet Package 8

Upper & 30” Lower w/ Storage Box/Door/Slide w/ Dresser/Drawer Bank

Tie Downs
(2) Recessed Airline Track in Floor – Partial – Recessed

Spare Tire
Spare Tire 205 on Steel or Aluminum
Spare Tire 225 on Steel or Aluminum
Interior Wall Spare Tire Mount

Electrical
(4) 49” Light Bars
(1) LED Porch Light w/ Switch
(2) 12V Scene Lights (Roadside or Curbside)
12V Powered Roof Vent (Front)
30 Amp Pkg w/ Conv & Lithium Battery
A/C 13,500 BTU w/ Heat Strip or 15,000 BTU Heat Pump & Thermo

Interior
Aluminum Ceiling (.030 White) & Sp Cover (Black)
Vinyl Ceiling (White) & Sp Cover (Black)
Aluminum Wall (.030 White) – Replaces Wood
Vinyl Walls (White) – Replaces Wood
Insulated Walls (R-3) & Ceiling (R-6)
Black Coin Rubber Floor, Ramp, Transition
Aluminum Extruded Floor, Ramp, Transition
42” x 32” Slider Window (CS or RS) (450 Only)

Exterior
Aluminum Slide Out Step (N/A 16′)
(2) Flow Through Sidewall Vents
Electric Tongue Jack (3,500 lb)
Bogey Wheels
60” Full Transition Flap w/ Adjustable Bumpers
Exterior LifeTrac Lower (Curbside or Roadside) (450 Only)
