Rōm 800/900 – Stacker 28′ + 30′

Built to Last and Finish First

The Rōm Stacker is our premium stacker car hauler, and we’ve loaded it with the features you need most. The chassis is fully welded, using state-of-the-art weld tables that ensure precision alignment of all support members. It’s the optimal way to transport your treasured racing vehicles, classic collectibles or weekend toys.

Sizes
Available in 28', 30'
Basemodels
Choose the perfect fit from 2 models
View Floorplans
View Gallery
Close

Configurations

Available in 28' or 30'

Download Brochure Download Specsheet

8.5' x 28'

View Details
0/0
Axle Rating
(3) 7,000 lb
GVWR
23,100 lb
Curb Weight (800/900)
7,990 / 8,375 lb
Payload (800/900)
15,110 / 14,725 lb
Axle Type
Torsion
Overall Length
33' 3 1/8"
Overall Width
102"
Overall Height
13' 5"
Interior Length
28' 2"
Interior Width
97 5/8"
Interior Height
135"
Minimum Ground Clearance
9 3/4"
Rear Door Opening Width
90"
Rear Door Opening Height
90"
Tongue Length to Center of Ball
62"
Center of Coupler to Corner Radius
88"
Width Between Wheel Wells
80"
Brakes
6 Wheel Electric
Tire Size
235/85/16 LRG
Hitch Height to Top of Ball
20 15/16"
Hitch Ball Size
2 5/16"
Floor Crossmembers
16" OC
Wall Studs
16" OC
Ceiling Crossmembers
16" OC

8.5' x 30'

View Details
0/0
Axle Rating
(3) 7,000 lb
GVWR
23,100 lb
Curb Weight (800/900)
8,425 / 8,700 lb
Payload (800/900)
14,675 / 14,400 lb
Axle Type
Torsion
Overall Length
35' 3 1/8"
Overall Width
102"
Overall Height
13' 5"
Interior Length
30' 2"
Interior Width
97 5/8"
Interior Height
135"
Minimum Ground Clearance
9 3/4"
Rear Door Opening Width
90"
Rear Door Opening Height
90"
Tongue Length to Center of Ball
62"
Center of Coupler to Corner Radius
88"
Width Between Wheel Wells
80"
Brakes
6 Wheel Electric
Tire Size
235/85/16 LRG
Hitch Height to Top of Ball
20 15/16"
Hitch Ball Size
2 5/16"
Floor Crossmembers
16" OC
Wall Studs
16" OC
Ceiling Crossmembers
16" OC

The features you need most

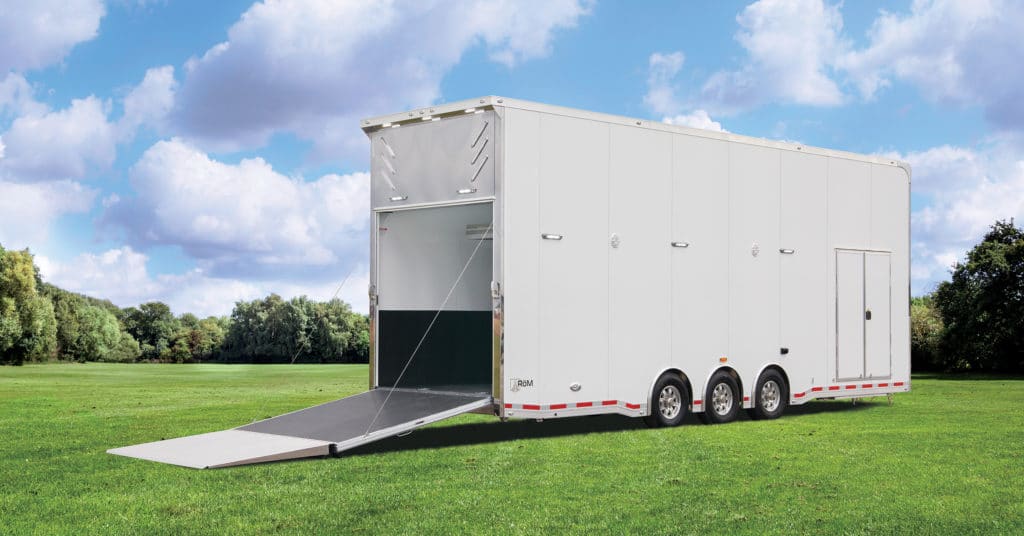

6,000 lb Rear Ramp Door

The ramp door is designed with a longer transition flap to assist in loading low-profile cars.

1/4

(3) Exterior Curbside Scene Lights

Because visibility is essential, we've added scene lighting on the side and rear of the trailer.

2/4

Premium Escape Door – 72”

The premium escape door makes getting in and out of your vehicle easy.

3/4

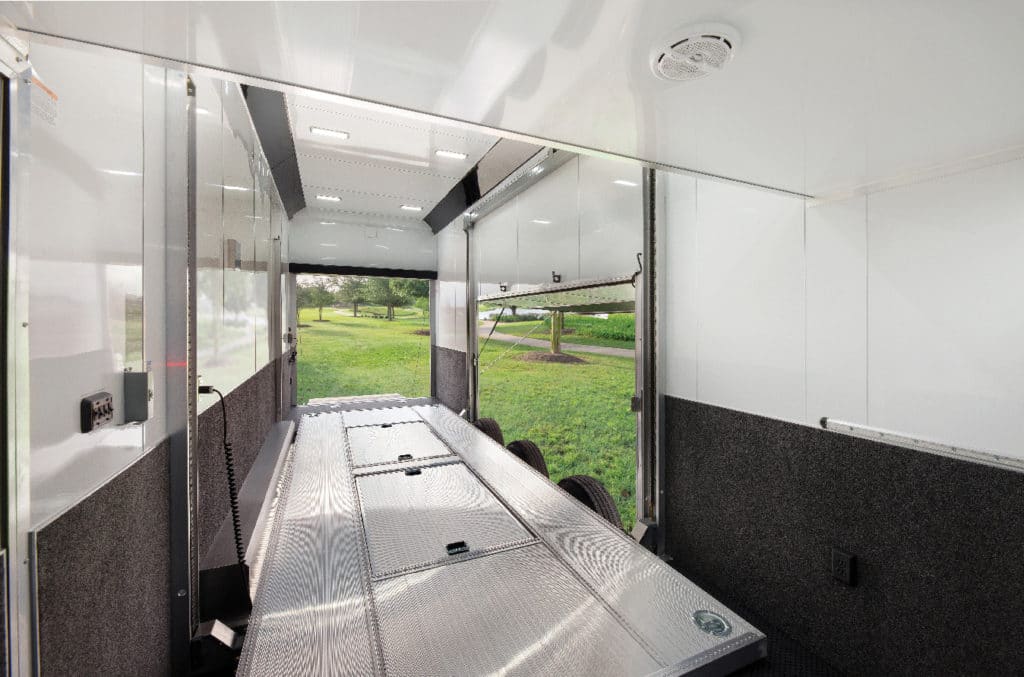

18' Stacker Lift with Removable Inserts

The Rōm Stacker has the best lift on the market. The aluminum tilt deck provides easy loading for low clearance cars, the integrated airline tie-down track makes it easy to secure your vehicle, and removal inserts make for easy access.

4/4

Polar White

1/2

Black

2/2

All Standard Features

  • Frame Features
  • Spread Axle
  • 16” Wheel – 8 Lug Aluminum Rim
  • Extended Tongue
  • 16” O/C Sidewalls
  • 16” O/C Floor – Chassis
  • 16” O/C 1” x 2” Roof Members
  • 6,000 lb Rear Ramp Door
  • Stainless Steel Rear Paddle Latches (on Ramp Door)
  • Bogey Wheels
  • 4 Bolt Coupler – Flat Front Tongue
  • Winch Plate
  • Interior Height 11’ 4”
  • Pod Jacks – Stabilizing
  • Spare Tire Mount Backer (Attic Roadside – Front)
  • Girard Lateral Arm Prep for 20’ Awning
  • Hydraulic Tongue Jack with Front & Rear Controls
  • ATP Tongue Cover
  • Exterior Features
  • ATP Gravel Guard (48”)
  • Screwless Exterior (0.050”) Metal
  • One-Piece Aluminum Roof
  • DOT Tape
  • Cast Corners – Polished
  • Upper & Lower trim – 4”
  • Stainless Steel Front Corner & Top Radius Trim
  • Stainless Steel Rear Vertical Corners
  • Brushed Fenderettes
  • Mid Ship Lights and Turn Signals
  • (3) Exterior Curbside Scene Lights
  • (2) Rear Scene Lights
  • Color Matched –Rear Header
  • Wired Rear Camera Prep – Voyager
  • Interior Features
  • Black TPO Floor and Ramp
  • Aluminum Walls and Ceiling (0.030”) – White
  • 0.125” ATP Attic
  • Attic Tiedowns – 4-Rope Rings
  • 48” Entry Door – 28’ Models
  • 60” Entry Door – 30’ Models
  • Slide In/Slide Out Step
  • Upper and Lower Cabinets
  • LED Strip Lighting (Under Cab and Lift)
  • Premium Escape Door – 72”
  • Stacker Cove – Black
  • 50 Amp Breaker Box with 60 Amp Converter
  • Power Cutoff Switch
  • (3) Interior Outlets – 15 Amp
  • (1) Exterior Outlet – 15 Amp
  • (2) 14" LED Light – Under Attic with Switch
  • (2) AGM Batteries
  • (8) 14" LED Ceiling Lights – (2) 3-Way Switch
  • 18' Stacker Lift with Removable Inserts
  • Stacker Lift Control – Wall Mounted Front & Rear

All Packages

  • 900 Series
  • Perimeter Skirting
  • Polished Fenderettes
  • Lower Trim – 7”
  • Attic Tie Downs – 2 Rows A-Track
  • (4) Floor Mounted Swivel D-Rings
  • Stainless Steel Rear Header & Spoiler
  • Upper and Lower Cabinets with Drawers and Closet
  • Wall Airline Track Segment
  • (3) AGM Batteries
  • In-Floor Battery Box – (3) Batteries
  • In-Floor Spare Tire Box
  • Air Compressor Prep
  • (1) Inlet, (3) Outlets
  • 20 Amp Dedicated Outlet & Switch
  • Exterior Docking Lights
  • 40” Bedrug – Interior Sidewalls
  • Stereo and Speakers
  • High Visibility Light Package
  • (1) Pair Backup Lights Diagonal - Ramp Door
  • (2) Pair Tail Lights Diagonal – Ramp Door
  • (3) Pair Tail Lights Diagonal – Rear Header
  • (2) Extra Clearance Lights – Lower
  • (4) Extra Clearance Lights – Upper
