Quest Limited Car Hauler

Up to $2,000 Rebate on Eligible Models

Purchase an eligible ATC Car Hauler between October 10 – November 30, 2022 and receive a $1,500 or $2,000 mail-in rebate. Full details can be found here.

Sizes
Available in 20', 24', 28'
Basemodels
Choose the perfect fit from 5 models
View Floorplans
View Gallery
Close

Download Brochure Download Specsheet

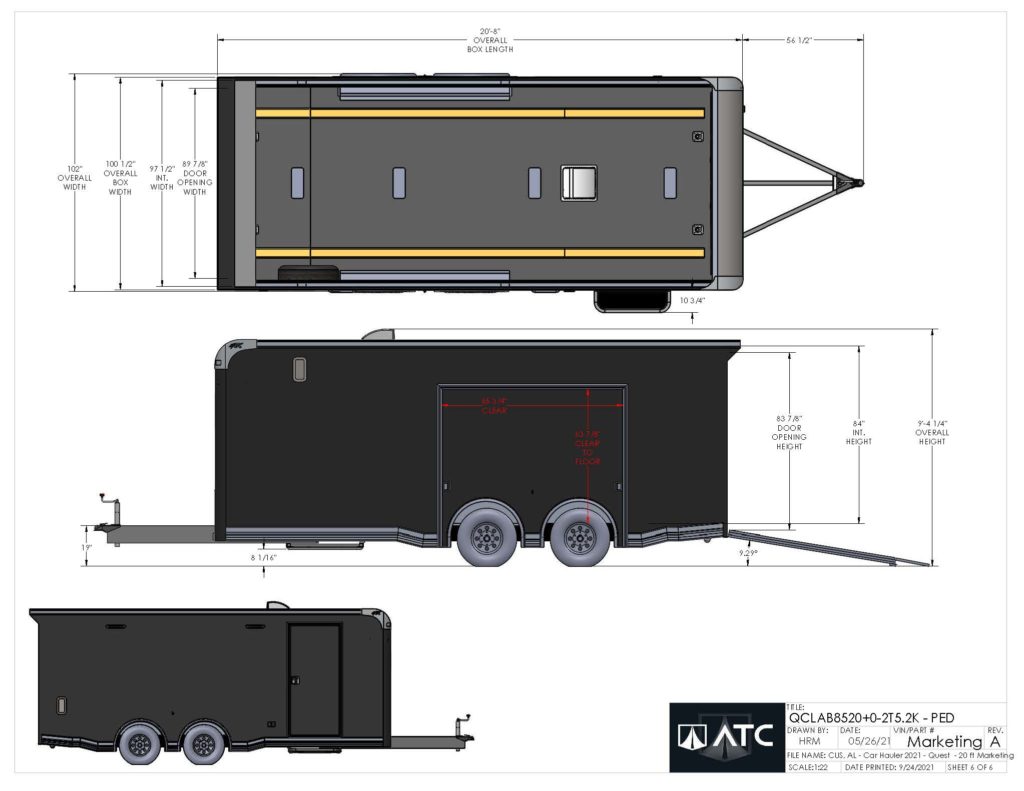

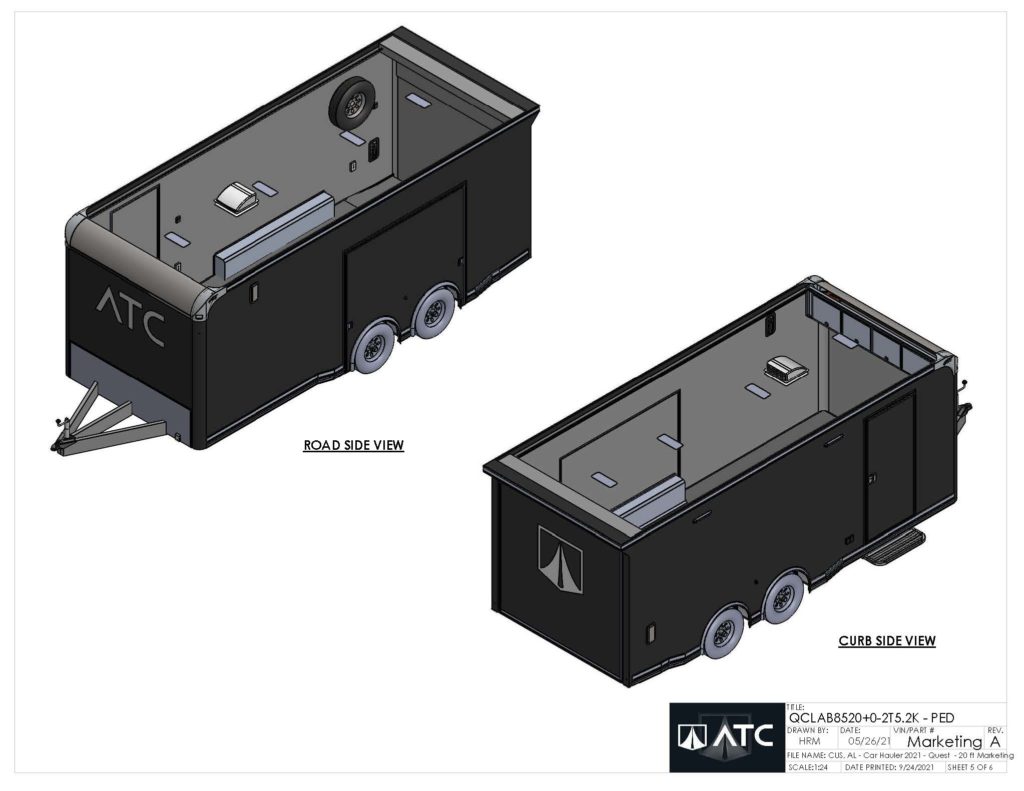

8.5' x 20' - Tandem 5200# Torsion Axle

View Details
0/0
Axle Rating
5200#
GVWR
9990#
Axle Type
Torsion
Overall Length (Includes 6" Spoiler)
24'10"
Overall Width
102"
Overall Height (Top of Roof Vent)
112.25"
Interior Length
19'11"
Interior Width
97.5"
Interior Height
84"
Minimum Ground Clearance
8-1/16"
Deck Height
19-3/4"
Rear Opening Width
89-7/8"
Rear Opening Height
83-7/8"
Tongue Length to Center of Ball
56.5"
Center of Coupler to Corner Radius
78.5"
Width Between Wheel Wells
83"
Brakes
4 Wheel Electric
Tire Size/Tire Load Range
225/75R15 LRD
Hitch Height To Top of Ball
19"
Hitch Ball Size
2-5/16"
Floor Studs
16"
Wall Studs
16"
Ceiling Studs
16"

8.5' x 24' - Tandem 5200# Torsion Axle

View Details
0/0
Axle Rating
5200#
GVWR
9990#
Axle Type
Torsion
Overall Length (Includes 6" Spoiler)
28'10"
Overall Width
102"
Overall Height (Top of Roof Vent)
112.75"
Interior Length
23'11"
Interior Width
97.5"
Interior Height
84"
Minimum Ground Clearance
8-1/16"
Deck Height
19-3/4"
Rear Opening Width
89-7/8"
Rear Opening Height
83-7/8"
Tongue Length to Center of Ball
56.5"
Center of Coupler to Corner Radius
78.5"
Width Between Wheel Wells
83"
Brakes
4 Wheel Electric
Tire Size/Tire Load Range
225/75R15 LRD
Hitch Height To Top of Ball
19"
Hitch Ball Size
2-5/16"
Floor Studs
16"
Wall Studs
16"
Ceiling Studs
16"

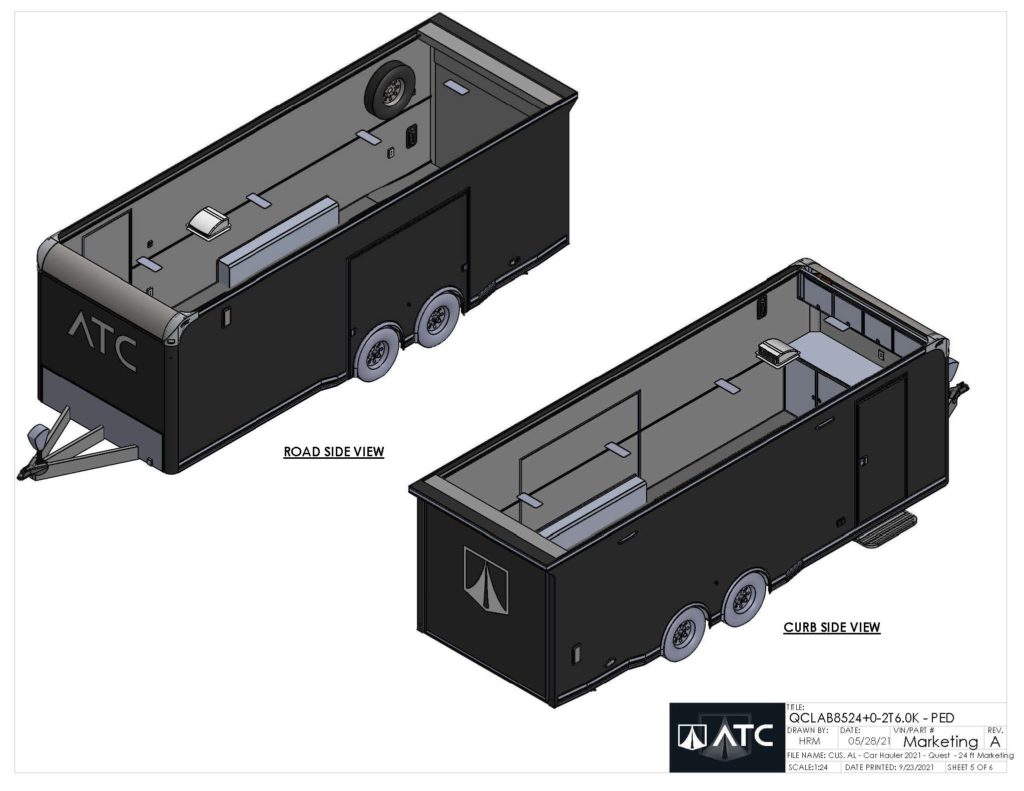

8.5' x 24' - Tandem 6000# Torsion Axle

View Details
0/0
Axle Rating
6000#
GVWR
13200#
Axle Type
Torsion
Overall Length (Includes 6" Spoiler)
28'10"
Overall Width
102"
Overall Height (Top of Roof Vent)
112.75"
Interior Length
23'11"
Interior Width
97.5"
Interior Height
84"
Minimum Ground Clearance
8-9/16"
Deck Height
20-1/4"
Rear Opening Width
89-7/8"
Rear Opening Height
83-7/8"
Tongue Length to Center of Ball
56.5"
Center of Coupler to Corner Radius
78.5"
Width Between Wheel Wells
80.625"
Brakes
4 Wheel Electric
Tire Size/Tire Load Range
235/80R16 LRE
Hitch Height To Top of Ball
19.5"
Hitch Ball Size
2-5/16"
Floor Studs
16"
Wall Studs
16"
Ceiling Studs
16"

8.5' x 28' - Tandem 5200# Torsion Axle

View Details
0/0
Axle Rating
5200#
GVWR
9990#
Axle Type
Torsion
Overall Length (Includes 6" Spoiler)
32'10"
Overall Width
102"
Overall Height (Top of Roof Vent)
121.75"
Interior Length
27'11"
Interior Width
97.5"
Interior Height
84"
Minimum Ground Clearance
8-9/16"
Deck Height
22-9/16"
Rear Opening Width
89-7/8"
Rear Opening Height
83-7/8"
Tongue Length to Center of Ball
56.5"
Center of Coupler to Corner Radius
78.5"
Width Between Wheel Wells
83"
Brakes
4 Wheel Electric
Tire Size/Tire Load Range
225/75R15 LRD
Hitch Height To Top of Ball
21.5"
Hitch Ball Size
2-5/16"
Floor Studs
16"
Wall Studs
16"
Ceiling Studs
16"

8.5' x 28' - Tandem 6000# Torsion Axle

View Details
0/0
Axle Rating
6000#
GVWR
13200#
Axle Type
Torsion
Overall Length (Includes 6" Spoiler)
32'10"
Overall Width
102"
Overall Height (Top of Roof Vent)
121.75"
Interior Length
27'11"
Interior Width
97.5"
Interior Height
84"
Minimum Ground Clearance
9-1/16"
Deck Height
23-1/16"
Rear Opening Width
89-7/8"
Rear Opening Height
83-7/8"
Tongue Length to Center of Ball
56.5"
Center of Coupler to Corner Radius
78.5"
Width Between Wheel Wells
80.625"
Brakes
4 Wheel Electric
Tire Size/Tire Load Range
235/80R16 LRE
Hitch Height To Top of Ball
22"
Hitch Ball Size
2-5/16"
Floor Studs
16"
Wall Studs
16"
Ceiling Studs
16"

The features you need most

Light Pewter Metallic

1/5

Medium Charcoal

2/5

Silver Frost

3/5

Black

4/5

Polar White

5/5

All Standard Features

  • Frame Features
  • Full Perimeter Aluminum Frame
  • All-Tube Aluminum Construction

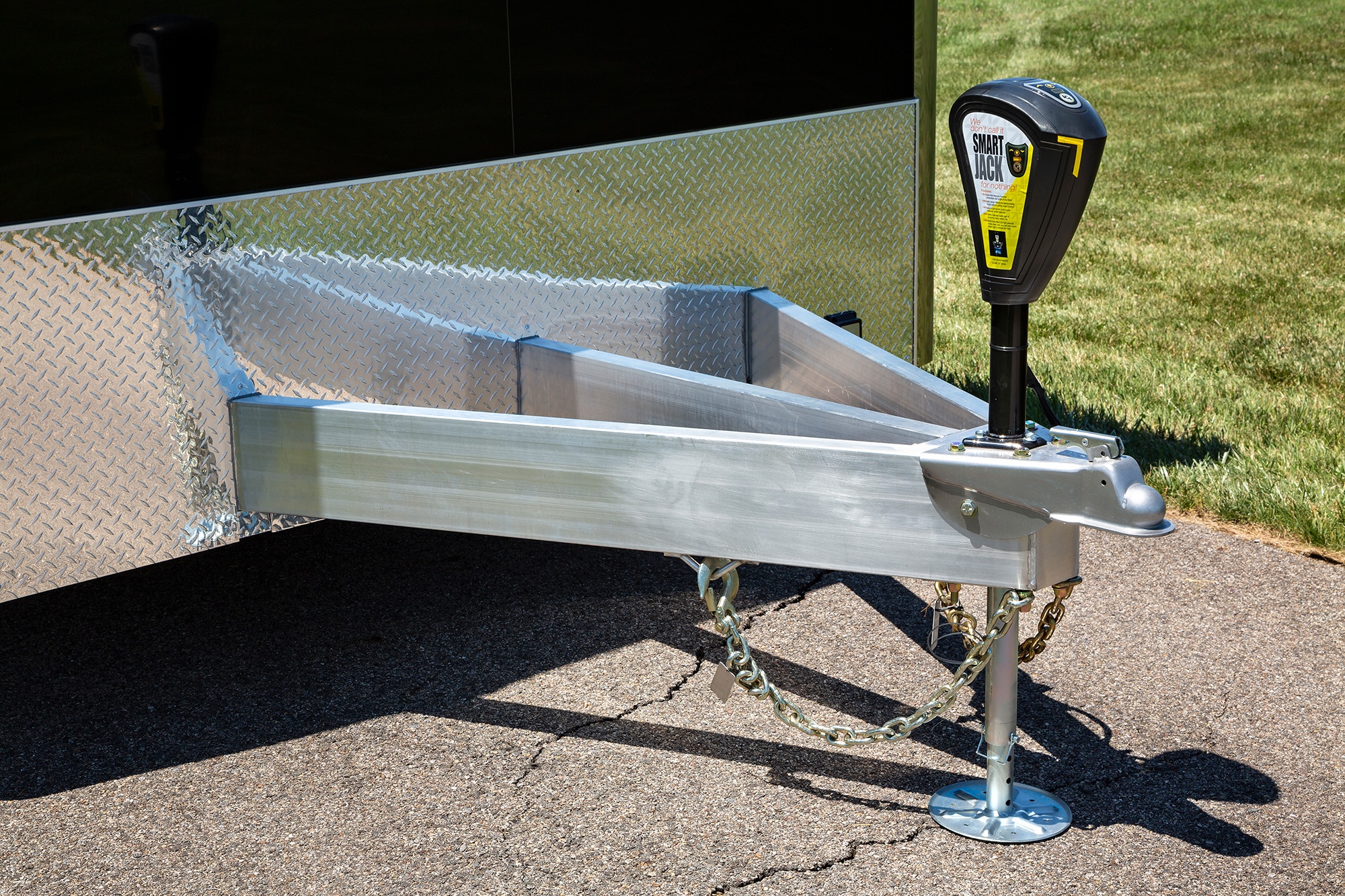

  • Extended Tongue
  • Torsion Axles
  • Electric Brakes - All Axles
  • Breakaway Battery Kit
  • 7- Way Trailer Plug
  • 2 5/16” Ball Coupler
  • Safety Chains w Storage Hooks
  • 5000# Manual Crank Jack
  • 16” O/C Floor Crossmembers
  • 16” O/C Wall Crossmembers
  • 16” O/C Roof Studs
  • Smooth Aluminum Wheel Boxes

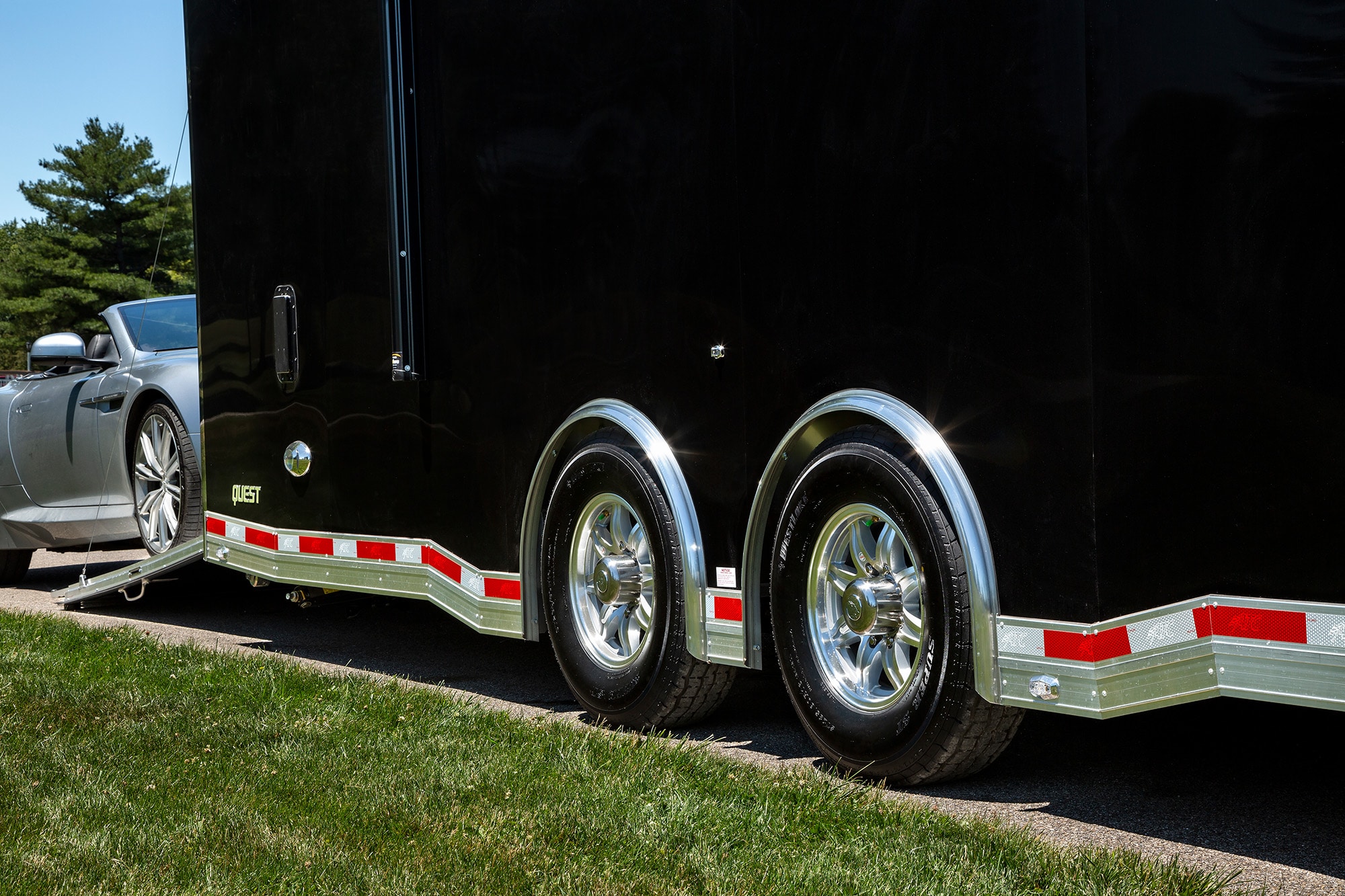

  • Spread Axle Design w Individual Fenderettes
  • Aluminum Wheels w Radial Tires - Nitro Fill
  • Winch Plate
  • Spare Tire Wall Mount Backer
  • Exterior Features
  • .040 Aluminum Skin - Screwless
  • Screwless/Rivetless Aluminum Exterior
  • One-Piece Aluminum Roof
  • 4” Upper Rub Rail Trim
  • 7” Lower Rub Rail Trim
  • LED Clearance Lights
  • LED Slimline Tail Lights - Pair
  • 24” ATP Stoneguard
  • 36” 405 Series Door
  • FMVSS Door Latch
  • Cast Corners w SS Vertical and Horizontal - Polished
  • TPO Floor

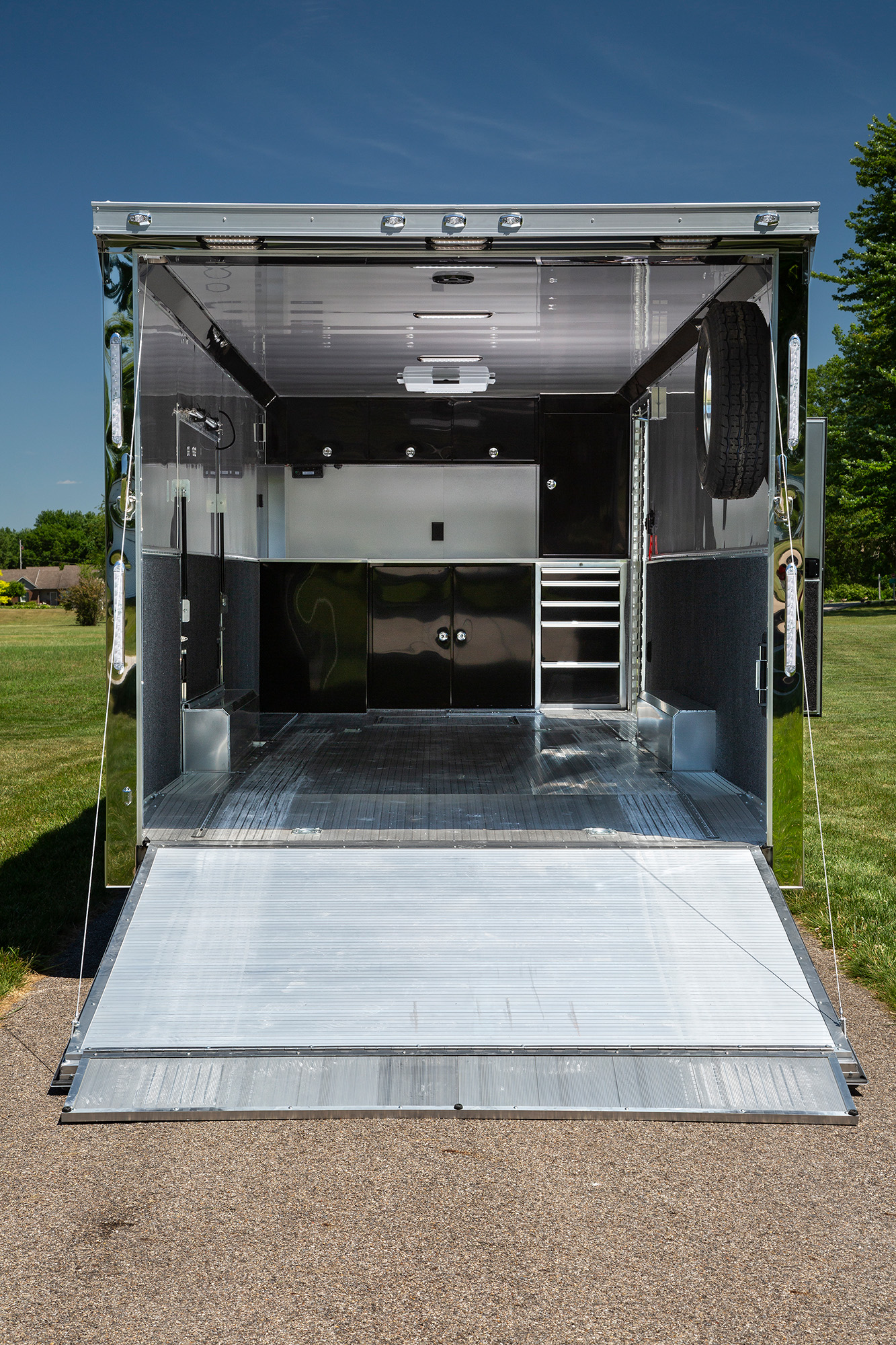

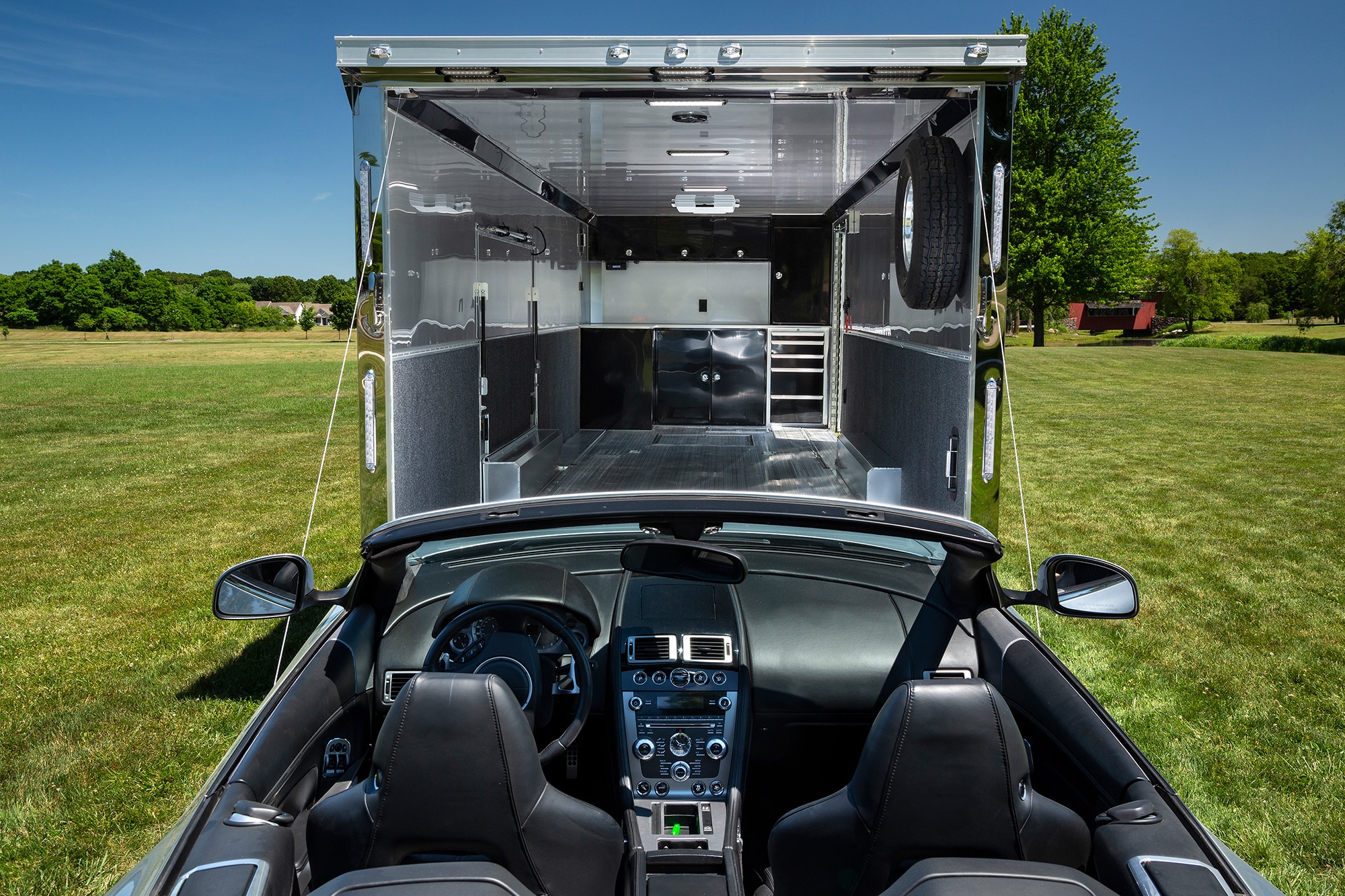

  • Rear Ramp Door - TPO - Gapless Continuous Hinge
  • SS Paddle Latches
  • Transition Flap - TPO
  • Rear Skid Plates
  • Rear Spoiler - Stainless Steel w/ (3) LED Lights
  • Stainless Steel Rear Verticals

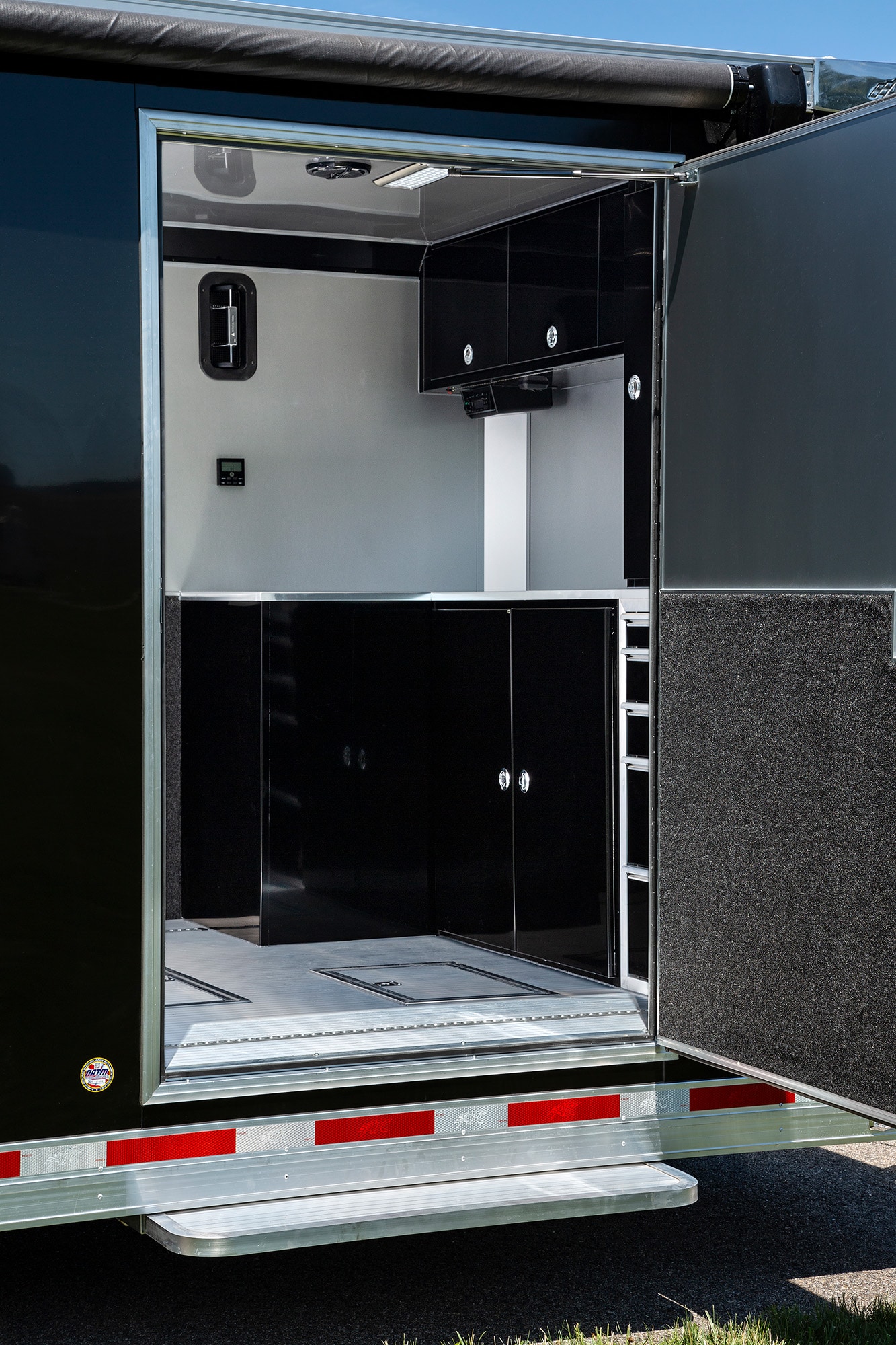

  • Aluminum Slide In/Out Step
  • Interior Features
  • Black Coin Floor and Ramp
  • (1) Roof Vent w Maxxair Cove
  • 7’ Interior Height
  • (4) 5000# Recessed D-Rings
  • 4’ Beavertail -(3’ for 20’ Trailer)
  • Screwless Aluminum Walls
  • Screwless Aluminum Ceiling
  • 50 Amp Breaker Box with 60 Amp Converter - 12v Fuse Panel - INTELI-PWR
  • Motorbase Plug and 25’ Shorecord
  • 12v AGM Battery
  • (3) 15 Amp Interior Outlets (1) Exterior GFI
  • (4) 14” 12v LED Lights
  • (2) External Scene Lights w Switch
  • 12v Cut-Off Switch

All Popular Options

  • Exterior Features

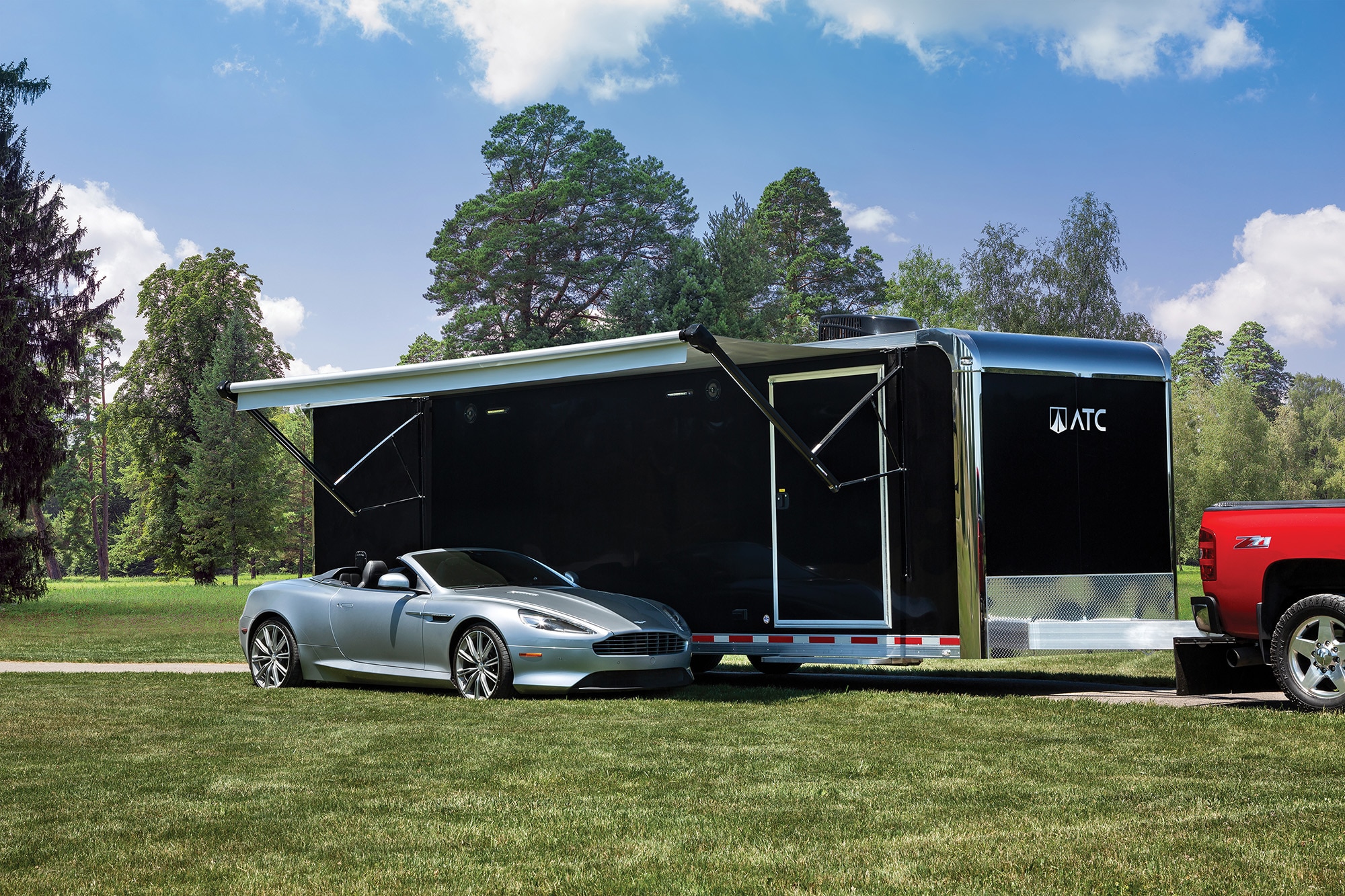

  • 12v Awning w LED Lights - 20’ Black - (24’, 28’)
  • 12v Awning w LED Lights - 16’ Black - (20’)

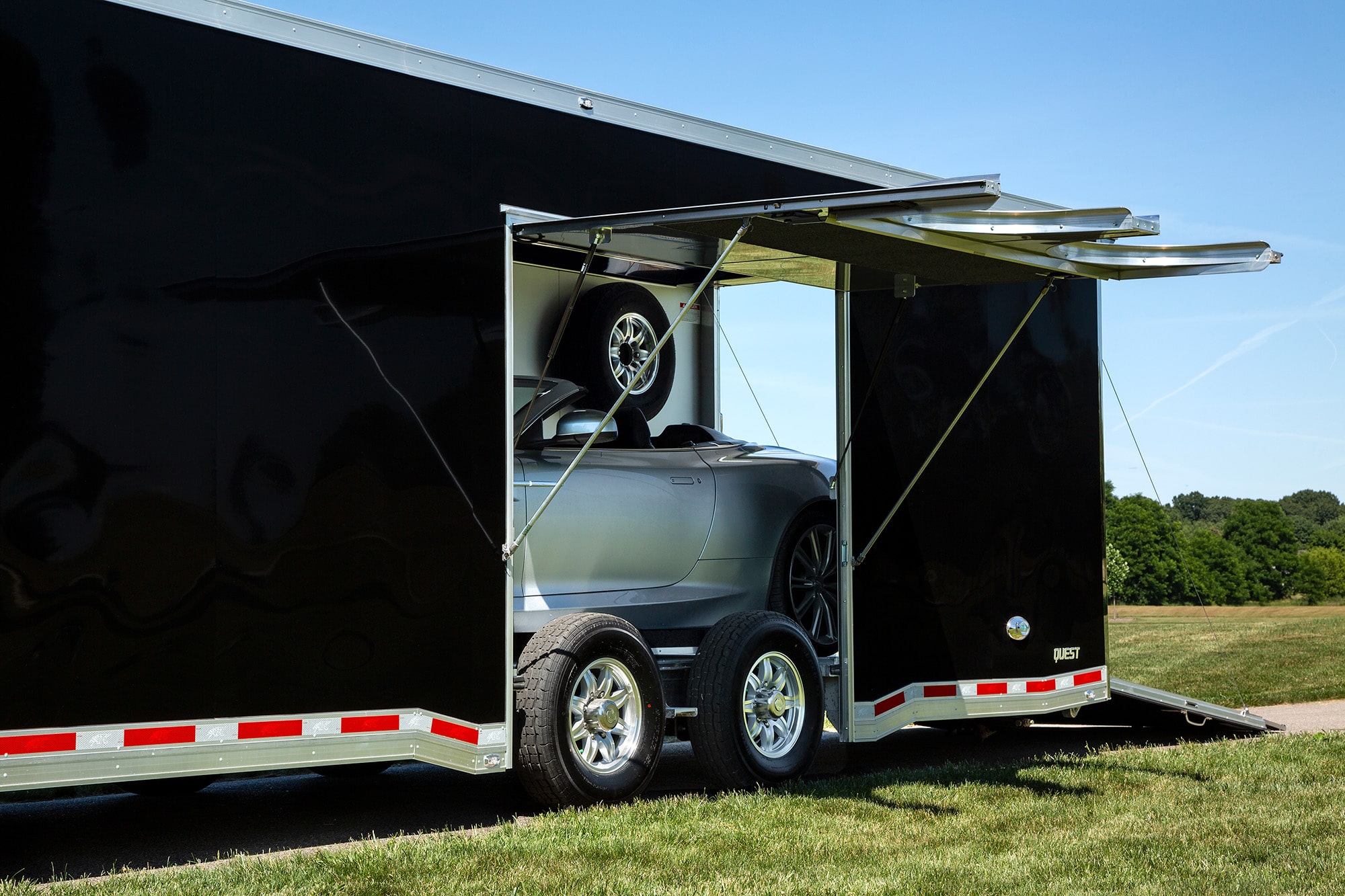

  • 88” x 66” Premium Escape Door - Removable Wheel Well
  • Insulated Walls and Ceiling
  • Extruded Aluminum Floor and Ramp
  • 48” Door with FMVSS Lock
  • Spare Tire on Aluminum
  • Spare Tire on Grey Mod
  • Winch - 5000# - Wireless Remote
  • Rear Scissor Jacks - 5000#
  • Electric Tongue Jack - 3500#
  • Docking Lights - LED - Stainless Steel - 12v
  • Interior Features
  • A/C 15,000 BTU w Thermostat
  • A/C 15,000 BTU w Heat Pump & Thermostat
  • AM/FM/CD/MP3 Stereo
  • Recessed Airline Track - 2 Tracks - Floor
  • Recessed E-Track - 2 Tracks - Floor
  • Surface Mount Airline Track Wall
  • Surface Mount E-Track Wall
  • Interior Wall Spare Tire Mount

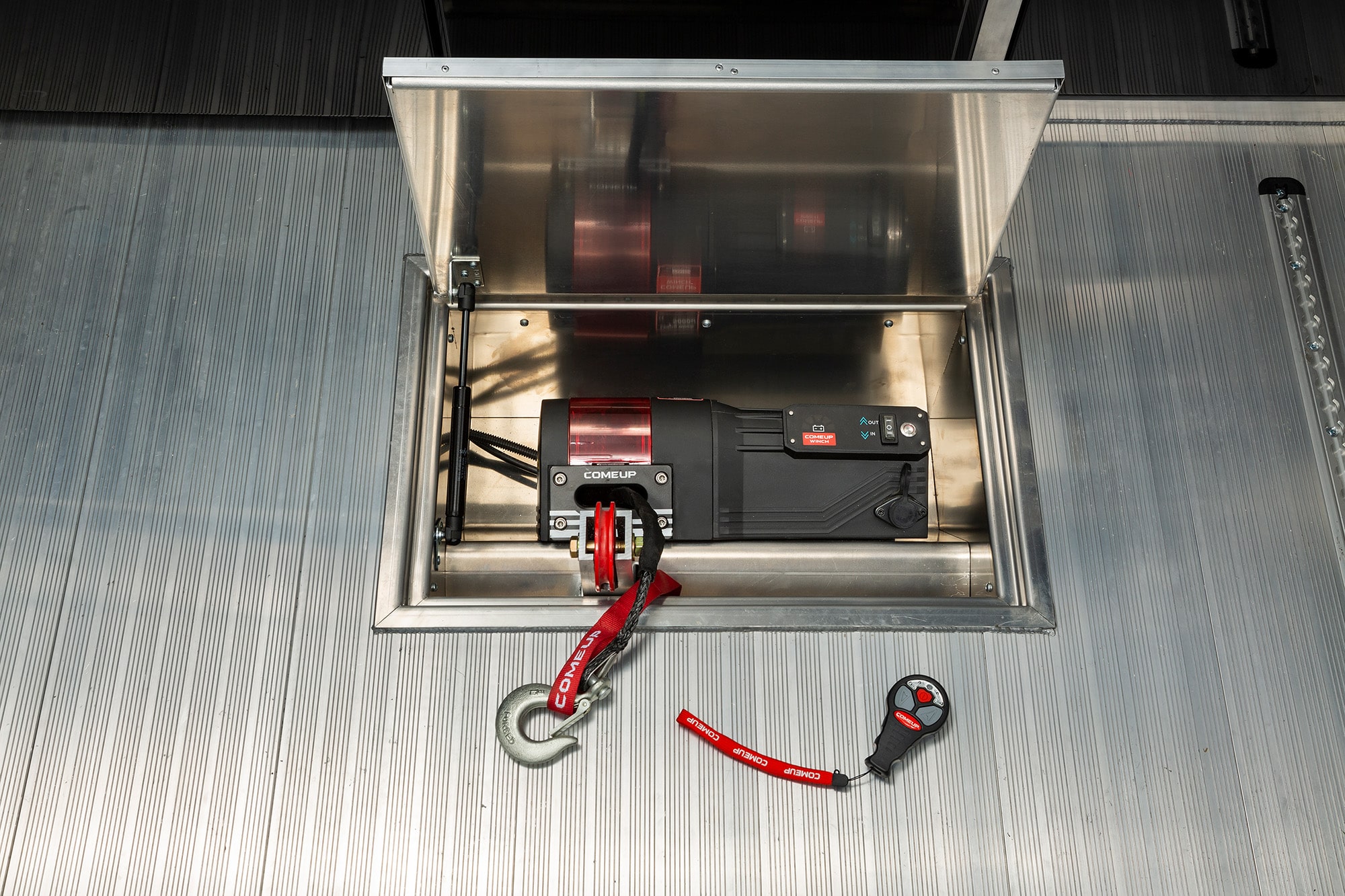

  • In-Floor Winch Box

All Packages

  • Exterior
  • Bogie Wheels
  • Side-Mount Turn Signals
  • Salem Vents
  • Awning Rail w Backer Supports for 12v Awning
  • Interior
  • Bed Rug on Walls 40” High
  • In-Floor Spare Tire Box
  • Insulated Walls
  • Insulated Ceiling
  • Deluxe (Not Available on 20' Models)
  • Bogie Wheels
  • Side-Mount Turn Signals
  • Salem Vents
  • Awning Rail w Backer Supports for 12v Awning
  • Bed Rug on Walls 40” High
  • In-Floor Spare Tire Box
  • Insulated Walls
  • Insulated Ceiling
