Sleeps: up to 10
Towable: Full-Size Truck
Fits: an ATV
Starting At:
$155,615
Luxury meets versatility in the 3611. This lightweight fifth wheel focuses on maximizing living space while preserving room for the gear that fuels your lifestyle.

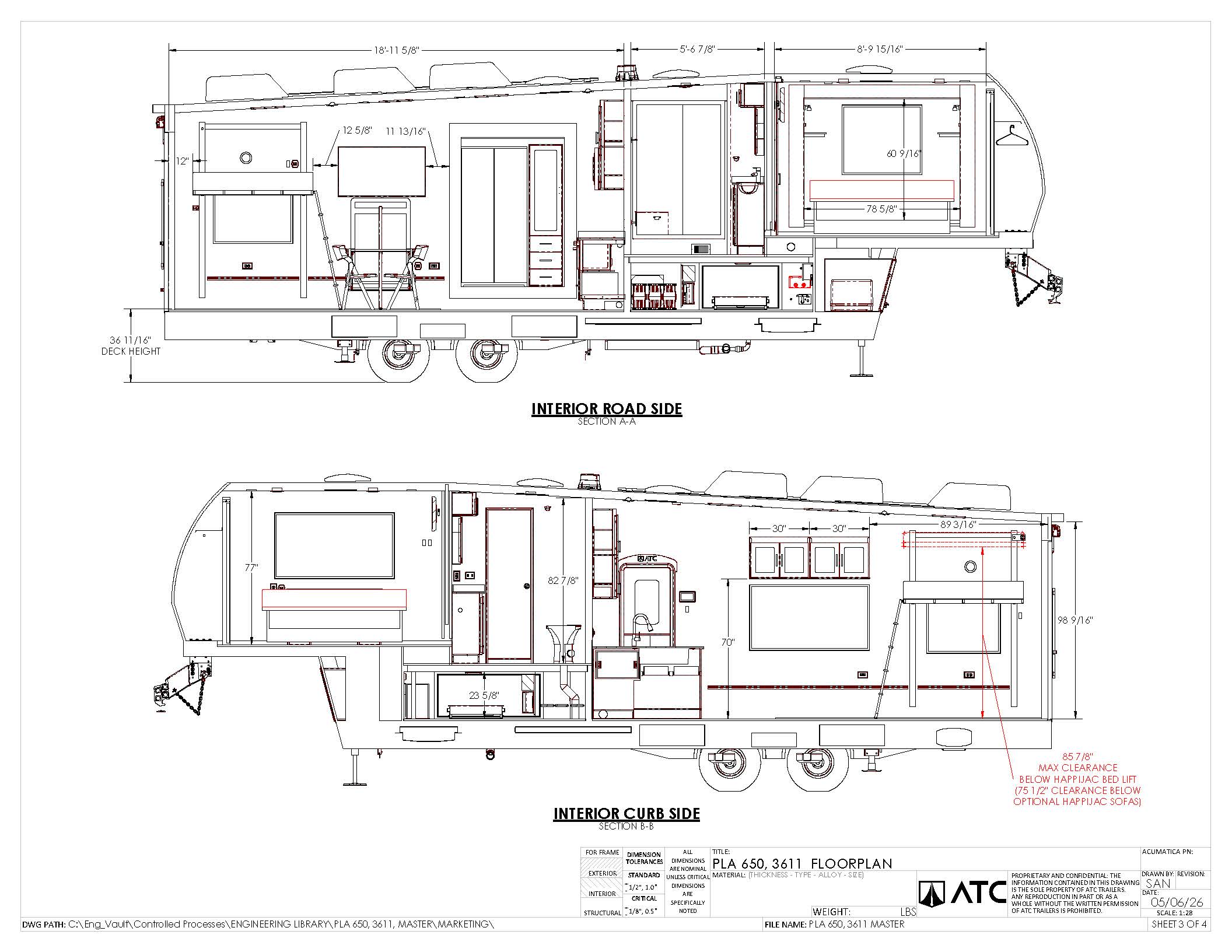

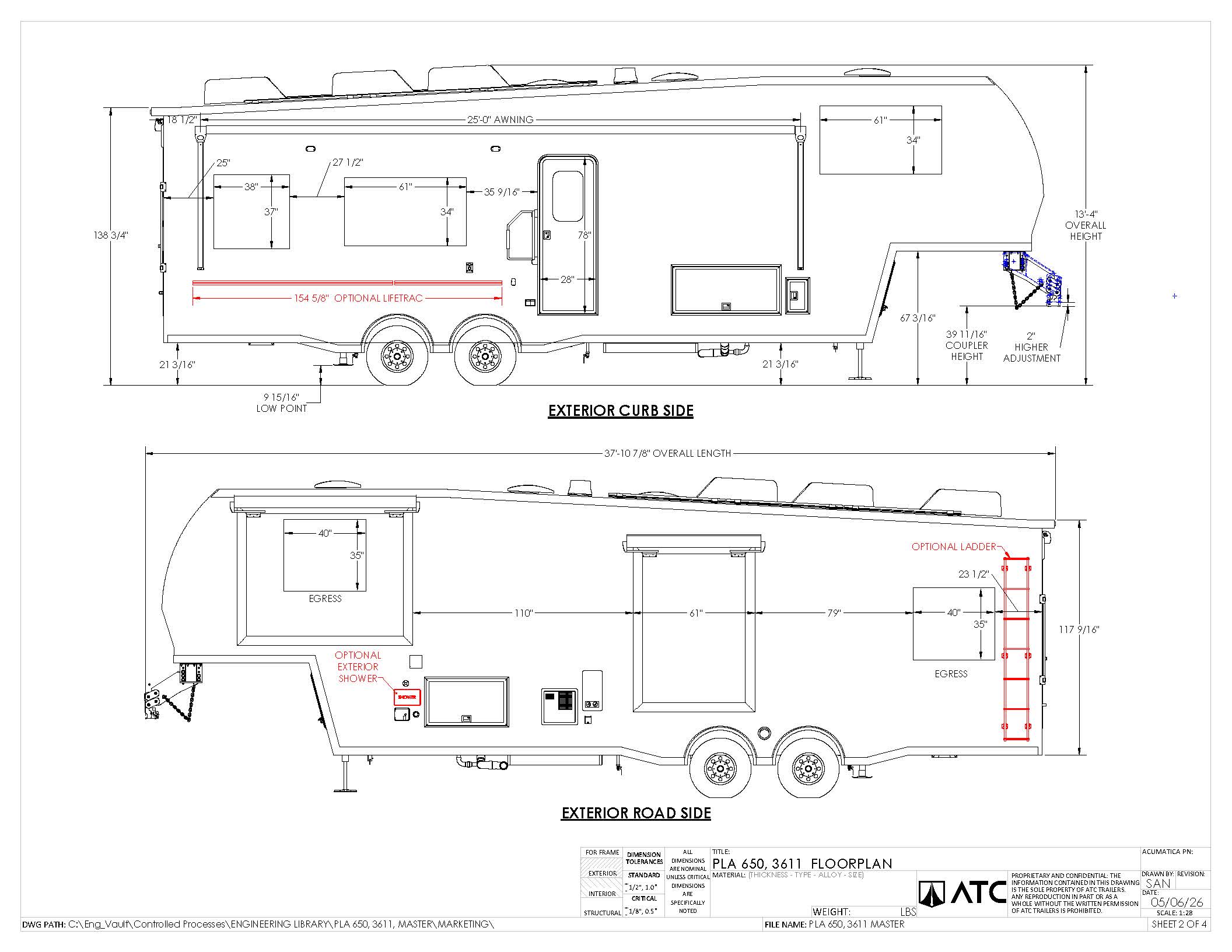

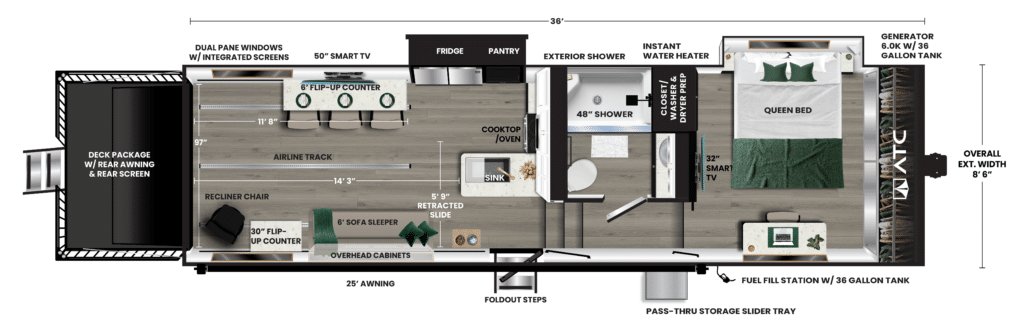

Specifications & Prints
| CAPACITIES | 3611 |
|---|---|
| Axle(s) - Quantity/Rating (lbs) | 2-7.0K |
| GVWR (lbs) | 16000 |
| Curb Weight* (lbs) | 11500 |
| Payload* (lbs) | 4500 |
| Ball Size / Coupler Rating (lbs) | GenY Hitch (Gooseneck) |
| DIMENSIONS | 3611 |
|---|---|
| Interior (L x W x H) | 36' x 97" x 90" |
| Overall (L x W x H) | 37' 11" x 102" x 161" |
| Rear Door Opening (W x H) | 96" x 90" |
| Deck Height | 35.5" |
| Hitch Height | 45" |
| APPEARANCE | 3611 |
|---|---|
| Front Shape | Radius |
| Wheels | 16" Aluminum |
| Tires | ST235/80R16 LRG |
| Power Connection | 7-Way |
Features & Options
Cargo
Cableless Rear Ramp Door
Rear Loading Lights
LifeTrac Modular Component System
Tie Downs- 93) Rows Airline Tracks with Cover
Exterior Pass Through Storage
Frame
Aluminum Tube Construction
16" On Center Floor Crossmembers
16" On Center Wall Crossmembers
16" On Center Roof Crossmembers
Towing
Hitch - Gen-Y Hitch (Gooseneck)
Stabilizer System - Hydraulic Auto Level
Aluminum Rims/Maxxis Tires
Spare Tire - Steel Rim
Backup Camera Prep
Exterior Living
(2) Scene Lights (Curbside)
Fold Out Adjustable Step
Power Awning with Light Strip
TV Prep Exterior
HD Digital TV Antenna w/ Wi-Fi Router
Interior Living
Touchscreen User Control Panel
Dimmable Can Ceiling Lights
50" HD Smart TV (120V)
Entry Door with Tinted Window & Screen Door
Frameless Dual Pane Windows w/ Shades & Screens
Flooring - Composite with Commercial Vinyl
Kitchen/Dining
Aluminum Cabinets with Solid Surface Counters
Dinette Table w/ith (4) Folding Chairs
Refrigerator (12V) (15 cu ft)
Convection Microwave
LP Cooktop (3 Burner & Oven)
Kitchen Slide-Out (3611, 4015, & 4419 Only)
Bedroom/Sleeping
Aluminum Cabinets with Solid Surface Counters
TV Prep in Bedroom
Residential Queen Bed with Storage
Vanity/Desk with Folding Chair
Bathroom
Porcelain Toilet
Shower- 30" x 48" w/Glass Door
Spa Jet Shower Fixture
Aluminum Cabinets with Solid Surface Counters
Heating and Cooling
Furnace (35,000 BTU)
Roof Vent with Remote - (3) 12V
Plumbing
City Water Hookup with Fill
Fresh Water Tank (100 Gallon)
Grey Tank (90 Gallon)
Waste Tank with Flush (45 Gallon)
Water Heater (LP Gas/Electric) (10 Gallon)
Heat Pads/Tape on Tanks/Waterlines
Exterior Water Spigot
LP Tanks with Quick Connect - (2) 30 lb
Generator Prep
Washer/Dryer Prep
Above and Beyond with All Weather Package
6-Sided Welded Aluminum Frame
Torsion Axles
Composite Ramp Door
Insulation: Wall (R7), Floor (R6), & Ceiling (R11)
Composite Flooring & Wall Panels
50 Amp Distribution Panel w/ 12V Converter
1-Piece Aluminum Roof
Enclosed Underbelly
120V/USB Power Outlets
Design Your Own
Select a Base Model
3611
$155,615
4015
$167,288
Colors
Cashmere Grey
Linen Beige
Polar White
Silverfrost
Pewter
Medium Charcoal
Black
Nautical Blue
Sage Green
Sandstone Grey
Promoted Packages (Select 1)
Premier Package
$0
package
