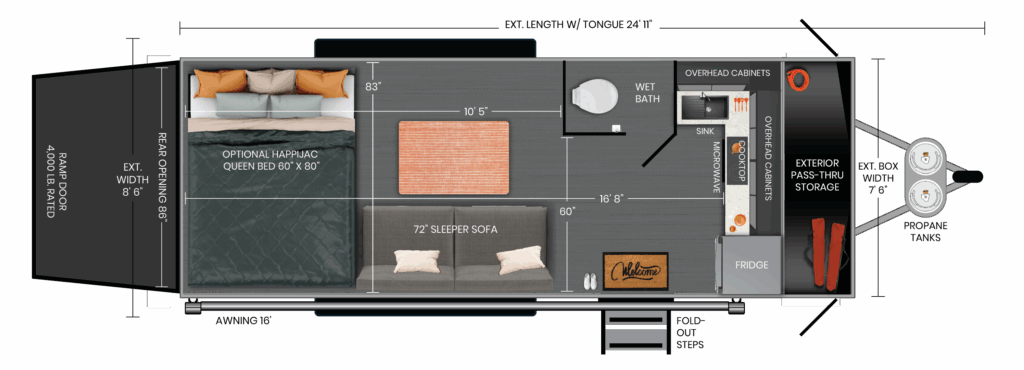

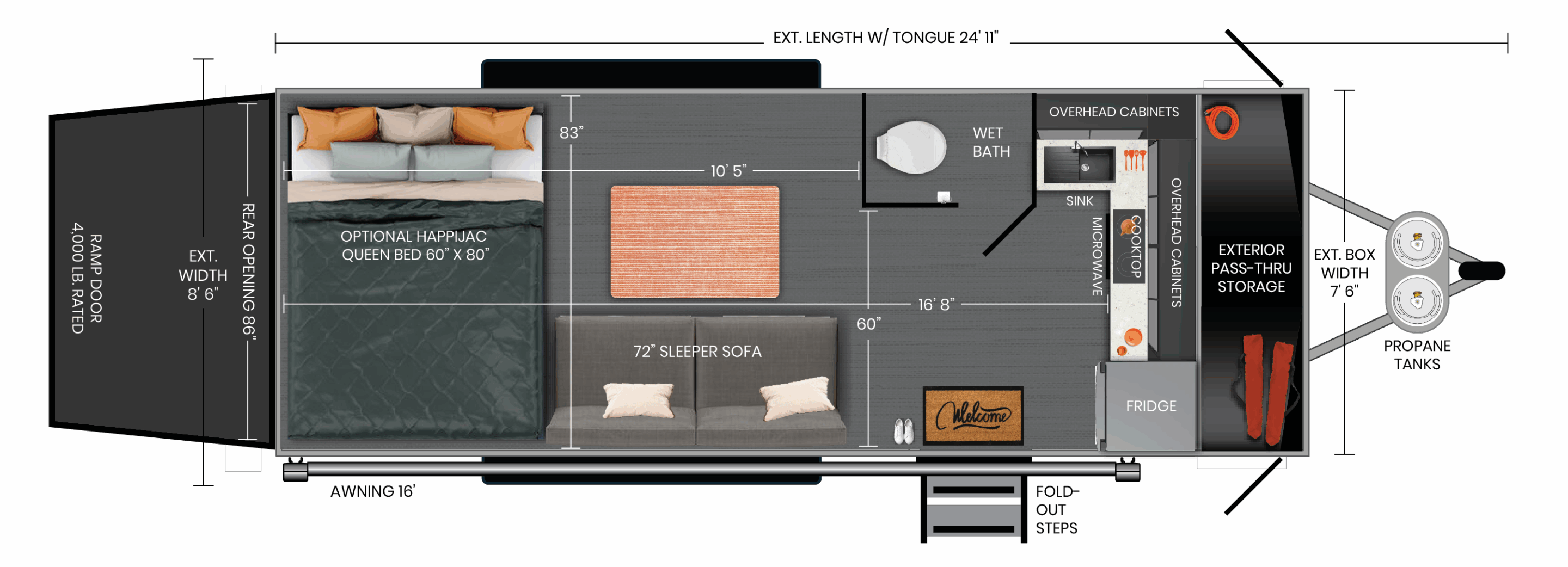

2016 Front Kitchen
Starting at
Full Details
Exterior Length (Includes Tongue)
24' 11"
Exterior Height (Includes A/C)
10' 6"
Overall Exterior Width
8' 6"
Box Width
7' 6"
Interior Height
7'
Rear Opening Width
86"
Rear Opening Height
81"
GVWR
7,700 lb
Estimated Base Model Weight
5,000 lb
Estimated Hitch Weight w/o Gen
650 lb
Estimated Carry Capacity
2,700 lb
Axle Size
2 x 3500 lbs
Tire Size
225/75R15E
Fresh Water Capacity
50 Gallon
Gray Water Capacity
45 Gallon
Waste Water Capacity
45 Gallon
Water Heater LP Gas/Electric
6 Gallon
LP Capacity
40 lb
Refrigerator
6.2 cu ft
Cooktop/Stove
2 Burner Gas
A/C
(1) 15,000 BTU
Heat
19,000 BTU
Awning
16'
Exterior Features
- Exterior Black Trim w/ Skirting
- Tongue Jack
- (4) Stabilizer Jacks
- Tongue Storage Tray
- Premium Tires on Aluminum Wheels
- Spare Tire on Hide-A-Spare – EZ Access
- Fold Out Adjustable Step
- Grab Handle
- Entry Door w/ Tinted Window & Screen Door
- Exterior Storage – Pass Through
- Frameless Dual Pane Tinted Windows
- Scene Light
- Power Awning w/ Lightstrip
- LP Quick Connect on Exterior
- Cable-less Rear Ramp Door w/ Non Slip Tread
- Loading Lights at Rear
- RVIA Seal
Interior Features
- LifeTrac Configurable Furniture Track System
- Blackout Roller Shades
- Airline Track Tie Down System
- Ducted LP Furnace
- (1) A/C Unit
- Residential Solid Surface Countertops
Electrical
- Energy Package 1000 (200 Watt Solar Panel, 1,000 Watt Inverter, 30 Amp MPPT Charge Controller, 100 Amp Hours of Battery, Second Battery Prep)
- 30 Amp Distribution Panel w/ Motorbase & Detachable Shorecord
- 12V Outlets
- Type A USB & Type C Throughout
- Manual Switch Interface
- Heated Lithium Battery
Plumbing
- DSI LP Gas/Electric Water Heater
- City Water Hook-up w/ Fill
- 20’ Sewer Hose w/ Storage
- Waste (Black) Tank Flush
Kitchen
- Convection Microwave
- Single Bowl Stainless Steel Sink
- 12V Refrigerator/Freezer
- Flush Mount LP Cook top
- Decorative Back splash
Bathroom
- Wet Bath – Shower & Porcelain Toilet
Bedroom
- Bunk Beds w/ Reading Lamps (n/a 2016)
Above & Beyond
- Full Perimeter Welded Frame (6 Sides Welded Together, No Wood)
- Axles – Torsion w/ EZ Lube & Self-Adjusting Brakes
- 1-Piece Aluminum Roof
- 3,000# Rated Composite Ramp Door
- Low Angle Ramp for Easier Loading
- Dimmable Ceiling Lights Throughout
- Composite Walls Panels (No Wood)
All Weather Protection Package
- Enclosed Underbelly w/ Radiant Barrier
- Closed Cell Insulation in Walls (R7)
- Closed Cell Insulation in Ceiling (R4)
- Structural Foam Sub Floor (R7)
- Ducted Furnace
Energy Package 2000
- (In Place of Energy Package 1000)
- 400 Watts Solar
- 2,000 Watt Inverter
- 30 Amp MPPT Charge Controller
- 200 Amp Hours Heated Lithium Battery (Battleborn)
- Firefly Touchscreen User Control Interface

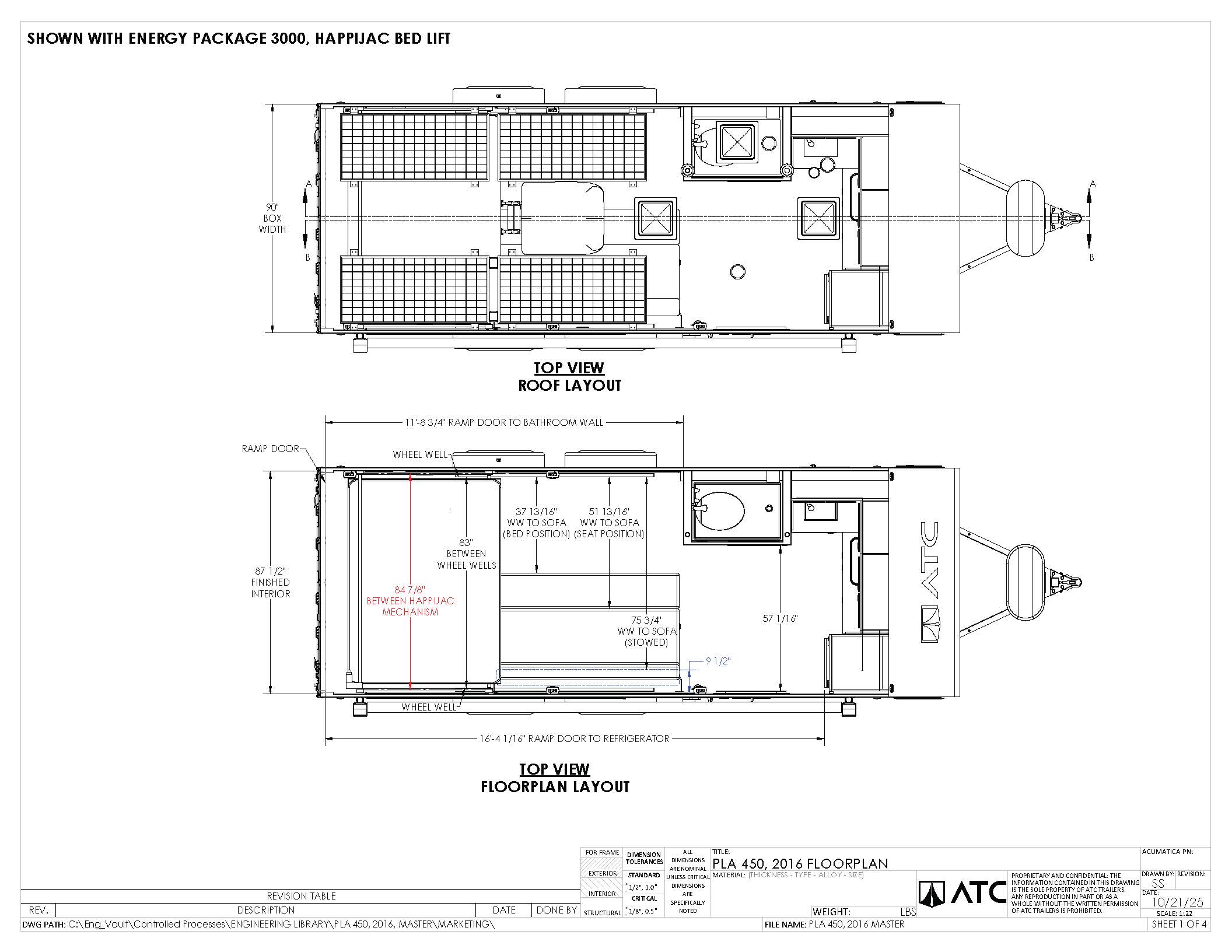

Energy Package 3000
- (In Place of Energy Package 1000)
- 800 Watts Solar
- 3,000 Watt Inverter
- 60 Amp Charge Controller
- 540 Amp Hours Heated Lithium Battery (Battleborn)
- Firefly Touchscreen User Control Interface
2nd Sofa, Table, & Vertical Cabinet Package
- (1) Sleeper Sofa
- (1) 36″ Table
- (1) 48″ x 24″ Cabinet
- (1) 24″ x 24″ Cabinet
72″ Upper/Lower Wall Cabinet Package
- (2) 12″ x 24″ Cabinets
- (1) 48″ Shelf
- (1) 48″ x 24″ Cabinet
- (1) 24″ x 24″ Cabinet
Bar Table & Recliners Package
- (1) 45″ Table
- (2) Swivel/Reclining Chairs
- (1) 24″ x 12″ Cabinet
Desk Table & Chairs Package
- (1) 45″ Table
- (2) Folding Chairs
- (1) 24″ x 12″ Cabinet
Dinette Table 45″ x 30″ with (4) Folding Chairs
- (1) Fold-Up Dinette Table
- (4) Folding Chairs
- (2) 24″ x 12″ Cabinets
End Table Package
- (1) 30″ Table
- (2) Folding Chairs
- (1) 24″ x 12″ Cabinet
Battery- 12V 100AH LifePo4 Heated (n/a w/ Energy Package 2000 or 3000)
Firefly Touch Screen User Interface
Off Road Appearance Package w/ Maxxis Tires
Bed Lift (Happijac) Single Queen
Deck Package (railing w/ steps, vinyl rear screen roll up)
Speaker – Bluetooth, Portable Waterproof
Tie Down Rings – Single Stud
Tie Down Rings – Triple Stud
Tongue Jack – Electric
TV – 12V Smart
Vinyl Rear Screen Roll Up w/ Windows (included w/ Deck Package)
Small 12” x 24” Wall Cabinet with Net
Small 12” x 24” Wall Cabinet with Poly Door
Medium 18” x 24” Wall Cabinet with Net
Medium 18” x 24” Wall Cabinet with Poly Door
Medium 24” x 24” Wall Cabinet with Net
Medium 24” x 24” Wall Cabinet with Poly Door
Large 36” x 24” Wall Cabinet with Net
Large 36” x 24” Wall Cabinet with Poly Door
Large 48” x 24” Wall Cabinet with Net
Large 48” x 24” Wall Cabinet with Poly Door
Large 24” x 48” x 12” w/ Poly Door - No Divider
Large 24” x 48” x 12” w/ Net - No Divider
48” Wall Shelf
24” x 36” x 18" Convection Microwave
24” x 36” x 18” Single Drawer
24” x 36” x 18” 4 Drawer
24” x 36” x 18” Sink (Self-Contained Plumbing)
34” x 36” x 18” 6.7 Stō Wedge Only
38” x 36” x 18” Sink & Convection Microwave (Self-Contained Plumbing)
38” x 36” x 18” Cooler Slideout
30” x 45" Folding Dinette Table, Solid Surface
36” x 30” x 18” Table Wall Floor Mount, Composite
36” x 30” x 18” Table with Interior or Exterior Wall Mount, Solid Surface
45” x 36” x 18” Table with Interior or Exterior Wall Mount, Composite
30" x 18" Table with Interior or Exterior Wall Mount, Solid Surface
45" x 18" Table with Interior or Exterior Wall Mount, Solid Surface
72" x 18" Table with Interior or Exterior Wall Mount, Solid Surface
38” Pedestal Reclining Swivel Chair - Black
Premium Folding Chair
Rollover Sleeper Sofa, Black
Rollover Sleeper Sofa, Grey
Fold-Down Bench
Folding Wall Bunk
Broom Holder
Cord Hanger
Deep Floor Bin - Single Fuel Jug Rack
Door/Wall Caddy
Double Cup Holder
Double Helmet Holder
LifeTrac Anchor Kit (x4)
Floor Jack Holder
Jack Stand Holder
Mini Holder
Multi Coat Hanger
Narrow Floor Bin
Premium Strap Hanger
Single Coat Hook
Strap Hanger
Wheel Chock
Mini Wall/Door Caddy
12V Dry Flush Toilet w/ Privacy Package
Sofa Bracket - Left
Sofa Bracket - Right
Soft Touch Installation Hardware Kit (x2)
Spring Hardware Kit (x2) (used for accessories)
T-Bolt with Nut Hardware Kit (x2) (used for cabinets/furniture)
T-Slot Aligning Joint
T-Slot End Cap (Pass Through)
T-Slot Track Kit - Black (50” with Hardware)
